Upgrade your expectations of mini C-arm performance
Upgrade your expectations of mini C-arm performance
For users with high demands, the TAU 1515 offers exactly the innovative functions that Orthoscan stands for with its mini C-arms.
A larger detector and corresponding live images give you the flexibility you need to visualize the anatomy according to your demands. Pulsed fluoroscopy and other dose-reducing functions enable excellent image quality while minimizing the dose.
With the unique application possibilities in pediatrics, you can reach a new group of patients. Bring new opportunities – for your facility and your patients.
Cutting-edge technology for superior imaging, designed for surgeons
- Large next generation 15 cm x 15 cm flat-panel

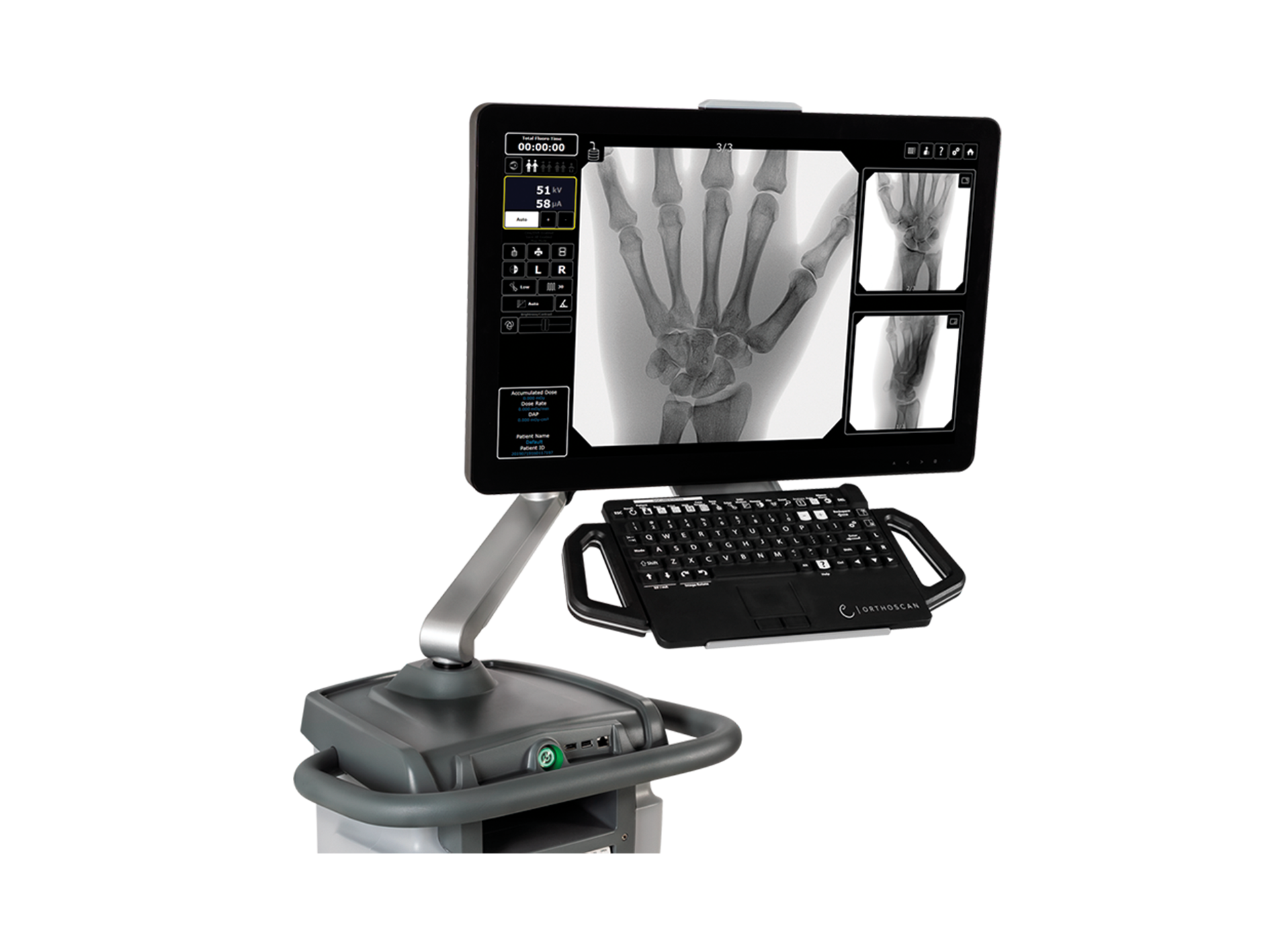

- Detail-rich images with high contrast on a 27" touchscreen monitor with 1,920 x 1,080 pixel and large 30.5 cm x 30.5 cm live image
- Ideal visualization of the anatomy without additional strain on the patient
Larger patient group and greater efficiency
- First mini C-arm approved for pediatric use
- Operating controls on both sides of the detector arm allow work in the sterile area without assistance
- The compact design and small footprint ensure an optimized workflow and greater efficiency in the daily routine
A mini C-arm that works with you
- Intuitive use thanks to the advanced Orthotouch™ operation interface
- Lightweight, compact design and 3-way braking system for effortless maneuvering and safe positioning
- Maximum flexibility thanks to increased orbital rotation of 160°
- Enough space to position your patients with an arc depth of 50.8 cm
- Optimized cable routing for ergonomic workflows in the OR
Up to 79% cumulative dose reduction¹ can be achieved
- Pulsed fluoroscopy (30 pulses per second) significantly reduces the dose compared to conventional non-pulsed fluoroscopy without loss of image quality
- Depending on the imaging requirements, a further dose reduction with 15 pulses per second or 7.5 pulses per second is possible
- Optimized dose filter
- Mag Mode maintains image quality without dose increase

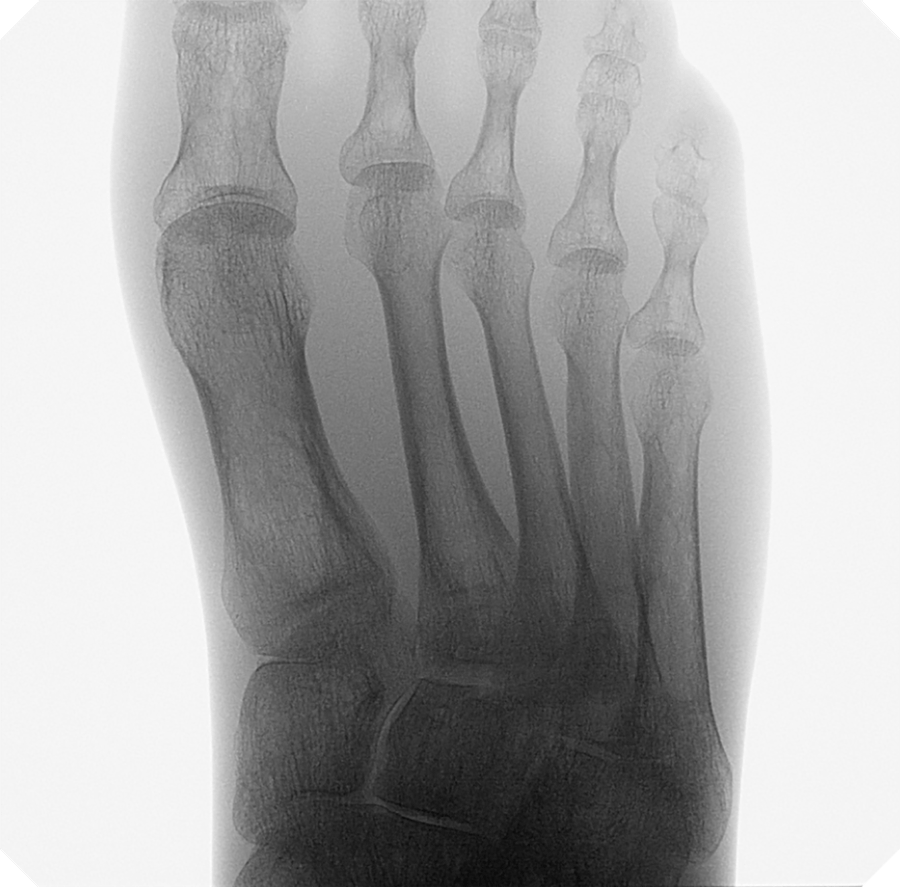

The best clinical images of the TAU1515
Find out more about the many different possible applications in clinical use
Open PDF Technical specifications
Imaging technology
Flat-panel, 15 cm x 15 cm
Resolution
1.5 k x 1.5 k
Pulsed Fluoroscopy
Viewing Option
High-resolution 27" touchscreen monitor (optional 32")
Footprint
73.7 cm x 83.8 cm
Weight
215.5 kg
Orbital Movement
160 degrees
Pediatric mode
Interested in learning more?
We are looking forward to getting your inquiry!
Disclaimer
-
1
Intelligent dose reduction (with optimized radiation filters) compared to Orthoscan 1000-0004-FD. In clinical practice, the use of IDR may reduce patient dose depending on the clinical task, patient size, anatomical location, and clinical procedure. A radiologist and a physicist should be consulted to determine the appropriate dose to obtain the diagnostic image quality for the particular clinical task.
