Exceptional imaging begins here
Exceptional imaging begins here

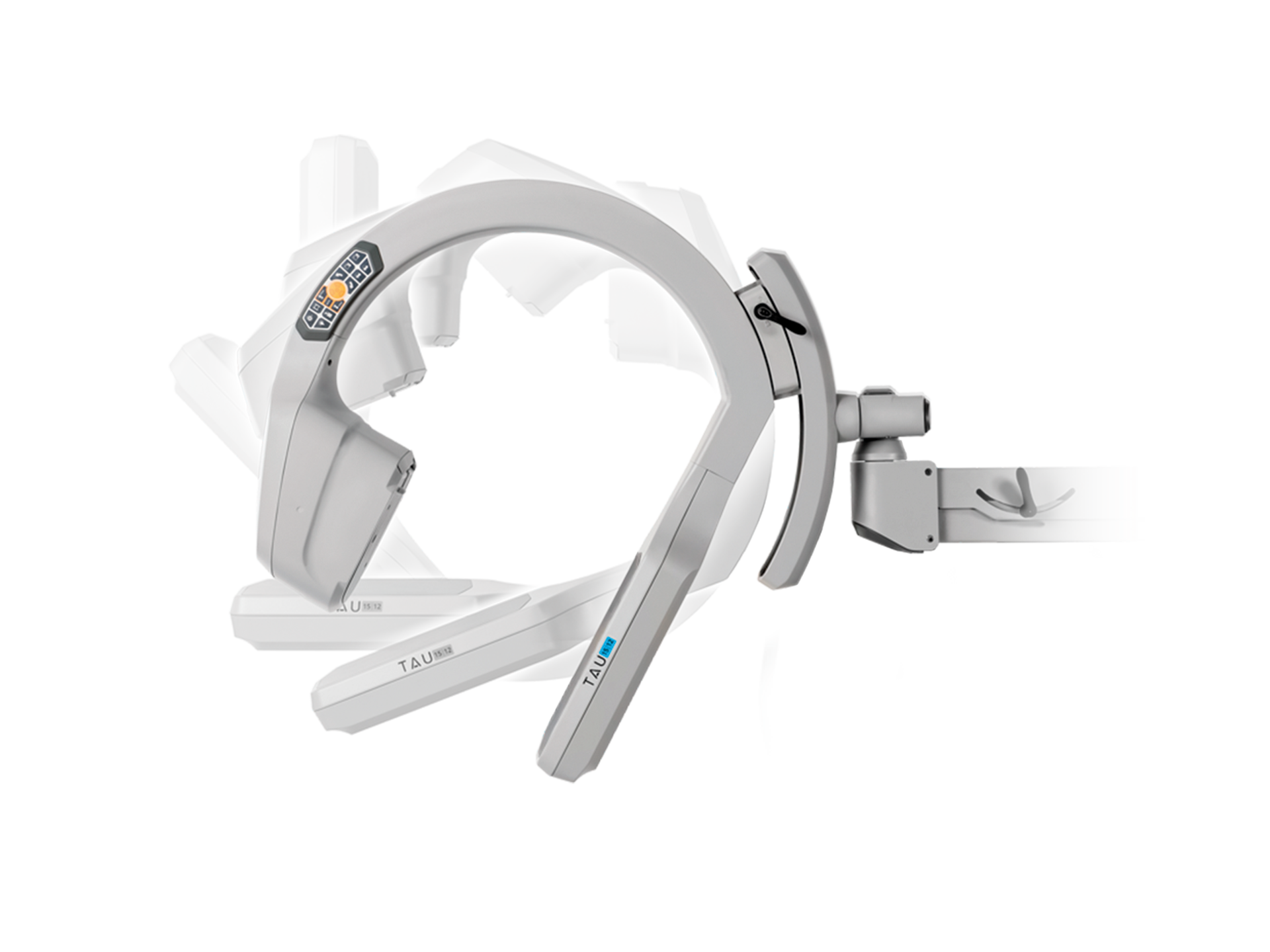

Developed together with users from the field of hand and foot surgery, the TAU 1512 is the entry-level model for the next generation of mini C-arms.
Exclusive dose-reducing functions, the intuitive Orthotouch™ user interface, and more flexible positioning thanks to the improved design have been combined in the compact lightweight – just as you would expect from an Orthoscan mini C-arm.
Optimum quality and performance in one package for every budget.
Cutting-edge technology for superior imaging, designed for surgeons
- 15 cm x 12 cm next generation flat-panel
- Detail-rich images with high contrast on a 24" touchscreen monitor with 1,920 x 1,080 pixel and large 25.4 cm x 20.3 cm live image
- Ideal visualization of the anatomy without additional strain on the patient
Larger patient group and greater efficiency
- First mini C-arm approved for pediatric use
- Operating controls on both sides of the detector arm allow work in the sterile area without assistance
- The compact design and small footprint ensure an optimized workflow and greater efficiency in the daily routine
A mini C-arm that works with you
- Intuitive use thanks to the advanced Orthotouch™ operation interface
- Lightweight, compact design and 3-way braking system for effortless maneuvering and safe positioning
- Maximum flexibility thanks to increased orbital rotation of 160°
- Enough space to position your patients with an arc depth of 50.8 cm
- Optimized cable routing for ergonomic workflows in the OR
Up to 66 % cumulative dose reduction¹ can be achieved
- Optimized dose filter
- Reduced exposure for surgeons and patients
- Mag Mode maintains image quality without dose increase
The best clinical images of the Orthoscan TAU 1512
Find out more about the many different possible applications in clinical use
Open PDF Technical specifications
Imaging technology
Flat-panel, 15 cm x 12 cm
Resolution
1.5 k x 1.2 k
Viewing Option
High-resolution 24" touchscreen monitor (optional 27“)
Footprint
73.7 cm x 83.8 cm
Weight
215.5 kg
Orbital Movement
160 degrees
Pediatric mode
Interested in learning more?
We are looking forward to getting your inquiry!
Disclaimer
-
1
Intelligent dose reduction (with optimized radiation filters) compared to Orthoscan 1000-0004. In continuous mode, users will not attain the stated levels of cumulative dose reduction that are possible with pulsed fluoroscopy. In clinical practice, the use of IDR may reduce patient dose depending on the clinical task, patient size, anatomical location, and clinical procedure. A radiologist and a physicist should be consulted to determine the appropriate dose to obtain the diagnostic image quality for the particular clinical task.
-
2
The Orthoscan TAU 1512 is approved in Germany for imaging of hand, foot and elbow.
