Dedicated 3D Cochlea Package
At Ziehm Imaging, we understand the importance to deliver well-suited tools for high-precision, intraoperative imaging, supporting the visualization of tiny electrode contacts within the cochlea.
That is why we offer a dedicated cochlea package for the Ziehm Vision RFD 3D CMOSline2. This system can be seen as an innovative method that may have the potential to change the clinical procedure of cochlear implantation, achieving more accuracy for the placement while still in the OR.
Ziehm Vision RFD 3D CMOSline -
A well-suited tool to visualize smallest details in cochlear implantation
Our mobile C-arm offers unprecedented performance across the most varied and challenging application spectrum. It combines 2D excellence with advanced intraoperative 3D technology, delivering high-end multidisciplinary capabilities, such as cochlear implant surgeries.
- Specialized cochlea package for intraoperative 3D imaging with 10 cm x 10 cm x 10 cm edge length
- Technological leadership with CT-like image quality
- High-resolution imaging with 512³ voxel for much more precise localization of electrode array in CI
- Benchmark dose settings and uncompromising image quality
3D imaging...
...plays a vital role in the planning, the implementation, control and, therefore, the successful placement of a cochlear implant.
Prof. Dr. Diana Arweiler-Harbeck
Department of Otorhinolaryngology
University Hospital Essen, Germany
Cochlear Implant

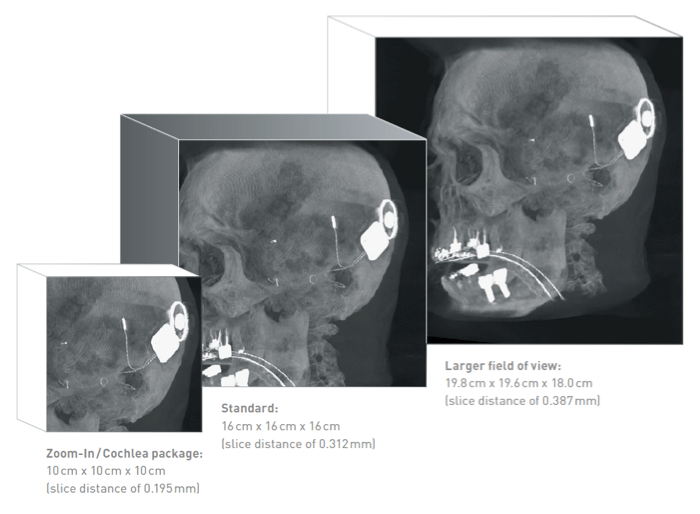

Due to the use of the specialized Cochlea package with a volume edge length of 10 cm x 10 cm x 10 cm and a resolution up to 512³ voxel, the mobile 3D C-arm provides a suitable option for zoom-in or intraoperative imaging in cochlear implantation. The single electrodes with a width of only 0.3 mm are clearly displayed due to the latest enhancements with CMOS flat-panel technology. The implant can be differentiated from the bone very well to determine the exact position.

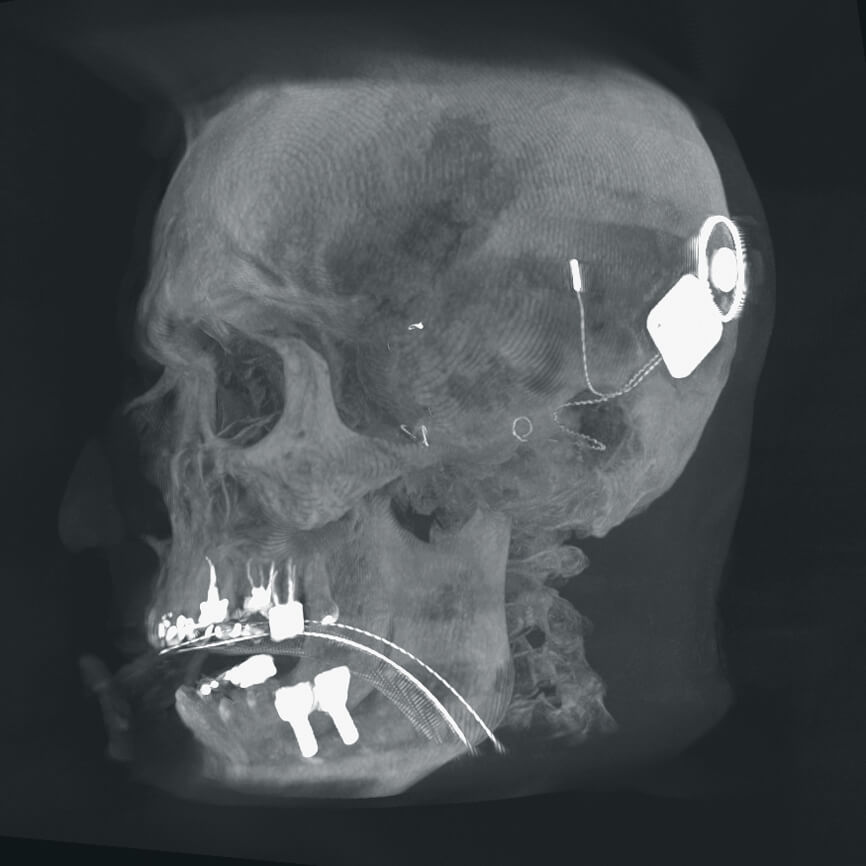

52 Years
kV: 80
University Hospital Essen, Germany
Cochlear Implant
"Due to its higher resolution the Ziehm Vision RFD 3D CMOSline allows a much more precise localization of the electrode carrier for cochlear implants, especially in demanding anatomies."
Prof. Dr. Diana Arweiler-Harbeck, University Hospital Essen, Germany

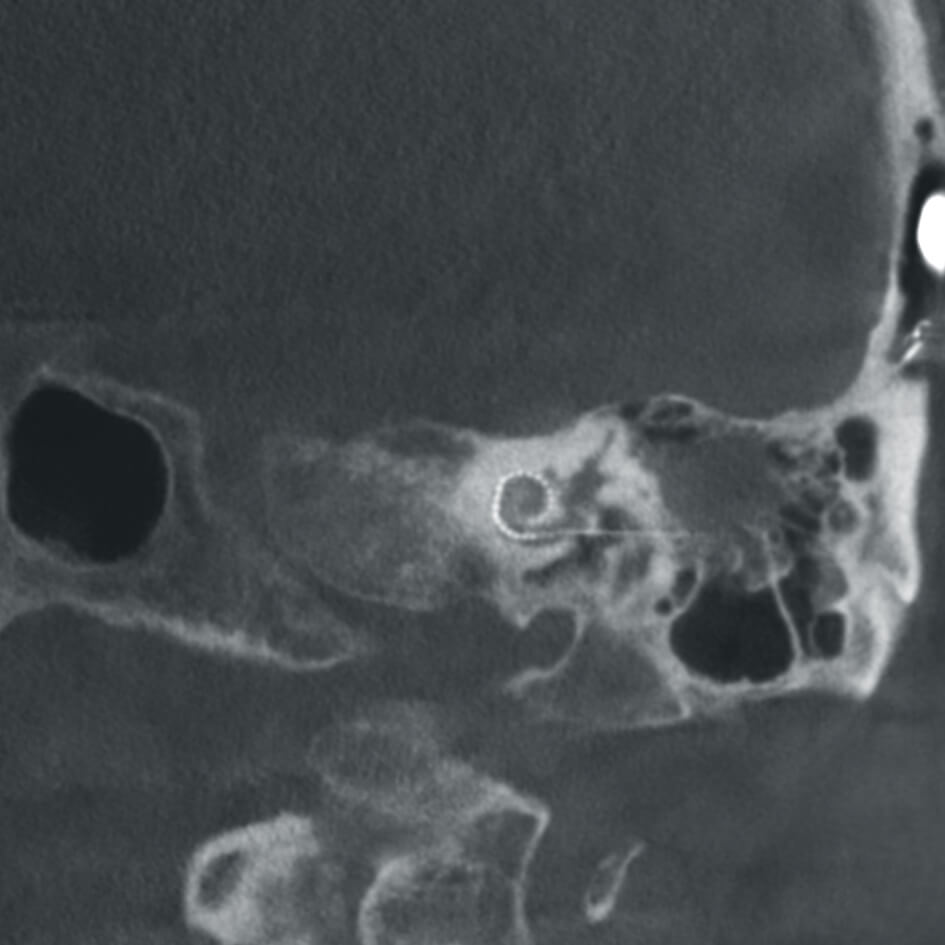

52 Years
kV: 80
University Hospital Essen, Germany
Join our peers at the forefront of high-end intraoperative 3D imaging
Improve your patients' everyday lives by providing a highly successful hearing outcome
Benefit from the potential to achieve more accuracy and reduce revision surgeries
Serve one of the most growing patient populations
DOWNLOADS & LINKS
1 SEVENTIETH WORLD HEALTH ASSEMBLY (WHA). Agenda item 15.8. Prevention of deafness and hearing loss.
2 CMOSline represents a system configuration that is based on a Ziehm Imaging CMOS flat-panel detector.
