Endovascular Navigation
Experience the first Endovascular Navigation
with image fusion technology integrated into a mobile C-arm
With Endovascular Navigation, physicians can achieve higher accuracy and therefore benefit from greater confidence during demanding hybrid procedures. The combination of preoperative anatomy information from CT data and intraoperative live images leads to even more accurate results while helping to reduce radiation dose and the use of contrast agents. A dedicated workflow on a single user interface combines imaging and Endovascular Navigation with image fusion technology enabling easy and fast handling.
The Endovascular Navigation software is designed for procedures in the aorto-iliac region. It can be used for complex interventions such as EVAR and FEVAR to provide physicians an unparalleled level of precision and confidence, helping them to deliver the best possible care.
First clinical experience
"We are very proud to be the first in the world to use this groundbreaking new technology integrated into a
Endovascular Navigation allows us to bring planning and fusion imaging to the
Image quality and workflow improvements are almost equivalent to those of fixed installed systems. We are particularly impressed by the automatic re-registration after changing the position of the
The savings in procedure time and expected reduction in contrast agent and radiation dose make a real difference for us and our patients in the further course of care."
Prof. Dr. med. Johannes Kalder
University Hospital of Giessen and Marburg (UKGM), Germany
Plan, perform and review your procedures with greater confidence
Plan in minutes with EndoSize2 using a fast, automated AI-based image processing algorithm.
Import planning on C-arm to have your 3D volume with all relevant information available intraoperatively – such as measurements, endograft name, C-arm positioning, and simulation of vessel deformations.
Work with fast Vascular Image Fusion and experience automatic registration and displayed fusion updated according to patient, table, or C-arm movements.
Navigate and review intuitively directly from the interventional table.
See everything at a glance
A dedicated workflow on a single user interface for both imaging and vascular intraoperative navigation provides greater ease of use.
✓ First Endovascular Navigation integrated into a mobile C-arm
✓ Plan, perform and review your procedures
✓ Easy and fast fusion imaging thanks to AI-based algorithms
✓ Helps to reduce contrast media and radiation dose
✓ Automatic re-registration for a fast and reliable fluent workflow
✓ Adaptation to the current situation in the OR without user interaction
At Ziehm Imaging, we understand that every operating room setup is different.
That is why we offer two solutions to bring Endovascular Navigation into ORs worldwide.
All-in-One Solution

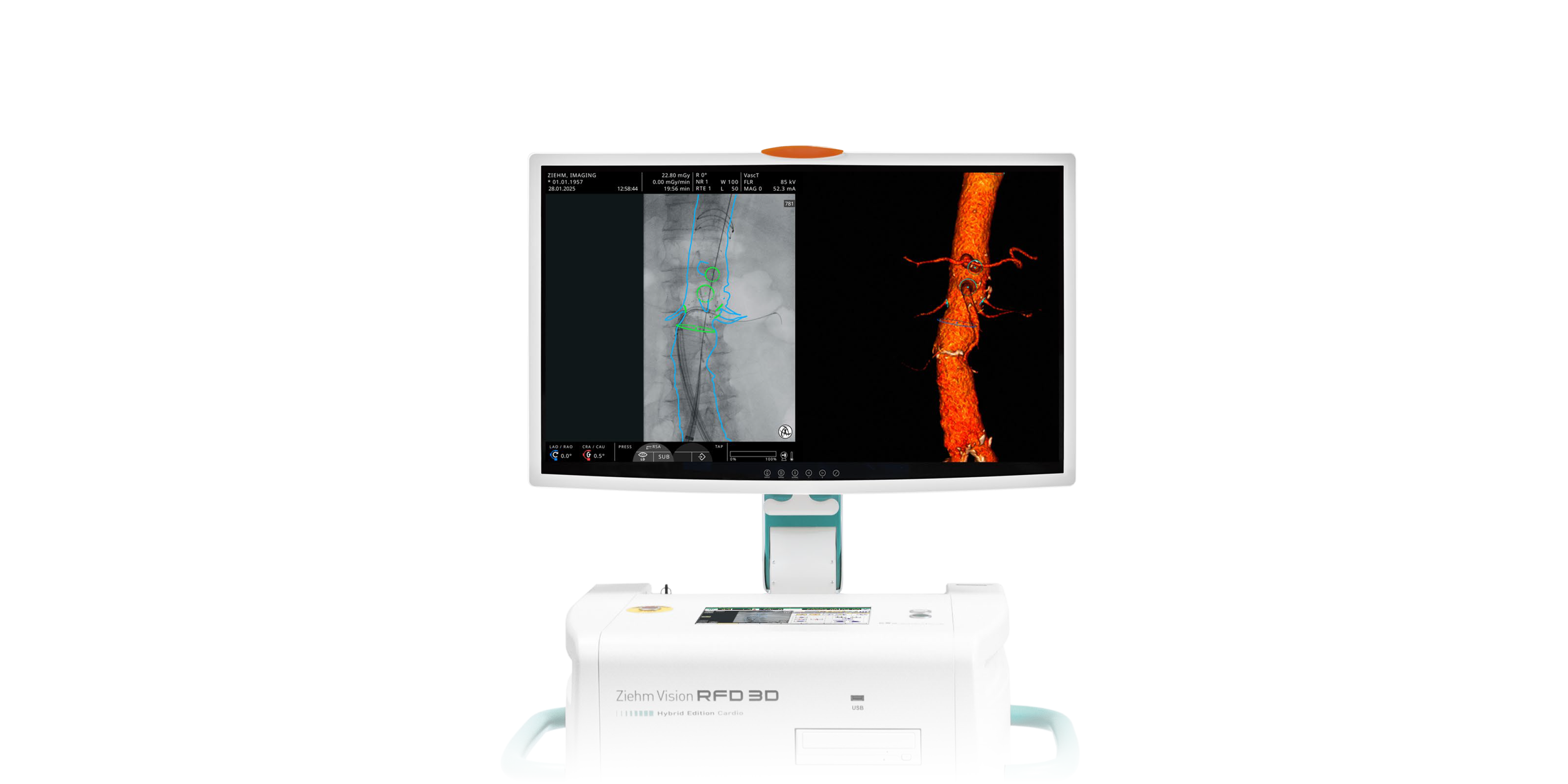

Fully integrated into the Ziehm Vision RFD Hybrid Edition, Ziehm Vision RFD Hybrid Edition Cardio and Ziehm Vision RFD 3D, combining mobile fluoroscopy and fusion imaging into one single interface to provide an easy, fast, and seamless workflow for maximum efficiency.
Learn more about the C-arms for cardiovascular surgery and multidisciplinary use: Ziehm Vision RFD Hybrid Edition3, Ziehm Vision RFD Hybrid Edition Cardio and Ziehm Vision RFD 3D.
Stand-Alone Solution
Using the EndoNaut workstation by Therenva, hospitals can expand existing C-arm systems with plug & play image fusion technology. The Therenva EndoNaut4 workstation offers two different modules, one for aorto-iliac procedures and one specially designed for peripheral diseases.
Both solutions combine with Therenva EndoSize2 to plan cardiovascular procedures in minutes using a fast, automated AI-based image processing algorithm.
Open PDF
Interested in learning more?
We are looking forward to getting your inquiry!
Disclaimer
- 1
Endovascular Navigation represents an optional software package. The software is a separate medical device owned by Therenva SAS. Planning is performed with the software EndoSize owned by Therenva SAS. The EndoSize licence is included in the Endovascular Navigation software package. For more information please refer to: www.ziehm.com
- 2
EndoSize® is a registered trademark of Therenva SAS. In the USA, the EndoSize® software obtained a substantial equivalence determination and FDA clearance through the CDRH premarket notification process (510(K)). In Europe, the EndoSize® software is CE marked (class IIa), not eligible for reimbursement. The information provided in the labelling and manual is intended for healthcare professionals only. For the safe and successful operation and use of the device, always read the instructions
- 3
Ziehm Vision RFD Hybrid Edition represents a group of optional hardware and software that creates an option package on the device named Ziehm Vision RFD.
- 4
EndoNaut® is a registered trademark of Therenva SAS. In the USA, the EndoNaut® software obtained a substantial equivalence determination and FDA clearance through the CDRH premarket notification process (510(K)). In Europe, the EndoNaut® software is CE marked (class IIb), not eligible for reimbursement. The information provided in the labelling and manual is intended for healthcare professionals only. For the safe and successful operation and use of the device, always read the instructions.
