Powerful, mobile imaging for cardiovascular interventions
Powerful, mobile imaging for cardiovascular interventions
Due to an aging population that can be observed worldwide, the number of cardiovascular diseases is rising and with it the demand for advanced imaging during corresponding interventions.
With this in mind, Ziehm Imaging has developed dedicated cardio packages and features the first mobile C-arm on the market with 30 kW generator as well as dedicated software applications for the Ziehm Vision RFD Hybrid Edition2 Cardio CMOSline3,4. It enables doctors worldwide to respond to the increasing demand for care in cardiology.
The mobile alternative to conventional cardiac CathLabs
- Pulsed monoblock generator with 30 kW power performance, unique on the market for mobile C-arms
- Latest CMOS flat-panel technology
- Redesigned imaging system QuantumStream with first true 2k2k image resolution for premium mobile imaging

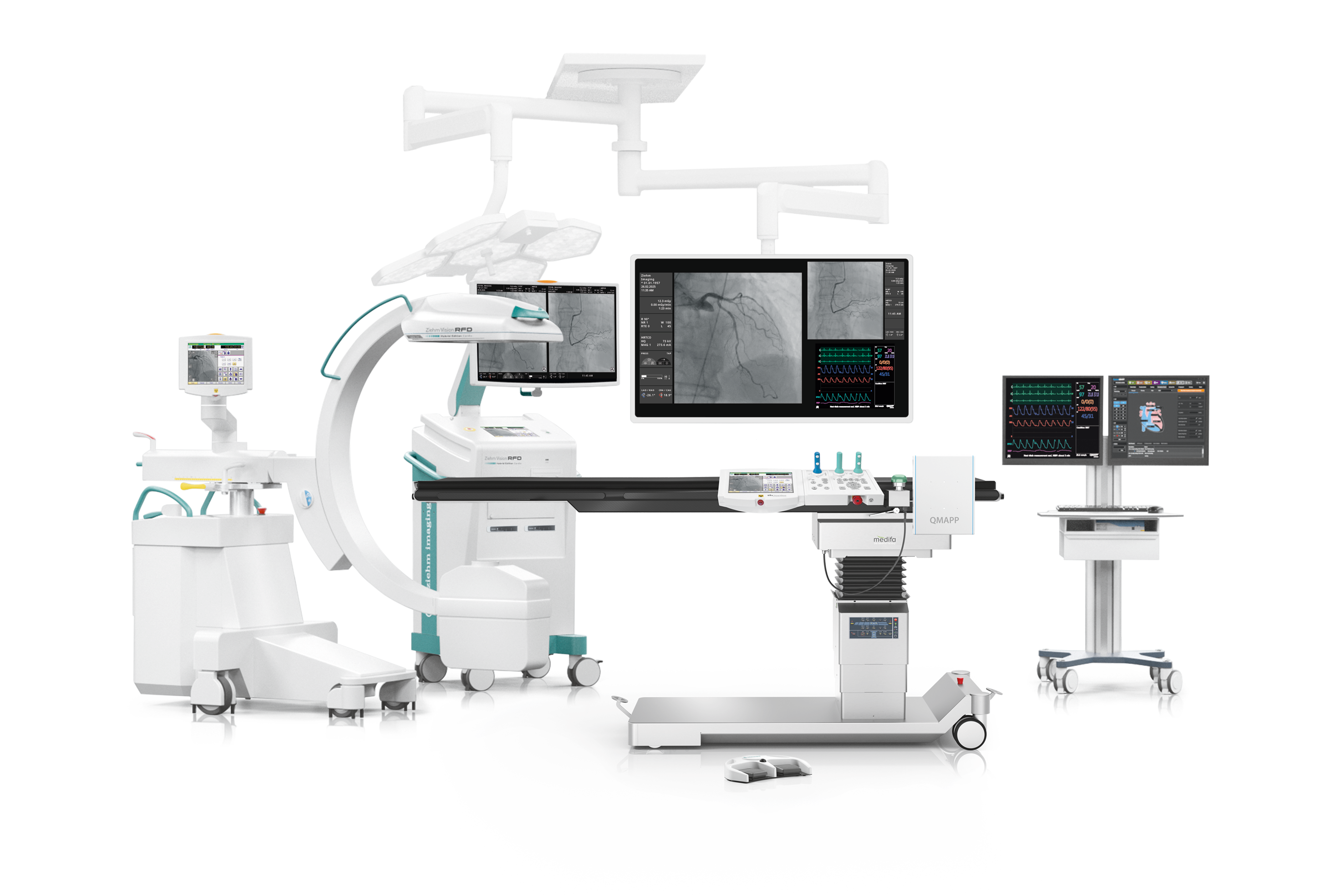

- Expandable with hemodynamic measurement systems such as Fysicon QMAPP®,5 and contrast media injector interface
Rapid return on investment through immediate use of all ORs for cardiology
- Lower acquisition and operating costs compared to fixed installed systems
- Easy and fast setup without OR preparation
- State-of-the-art connection options to all relevant partner systems
Reliable, uninterrupted use even during long-lasting interventions

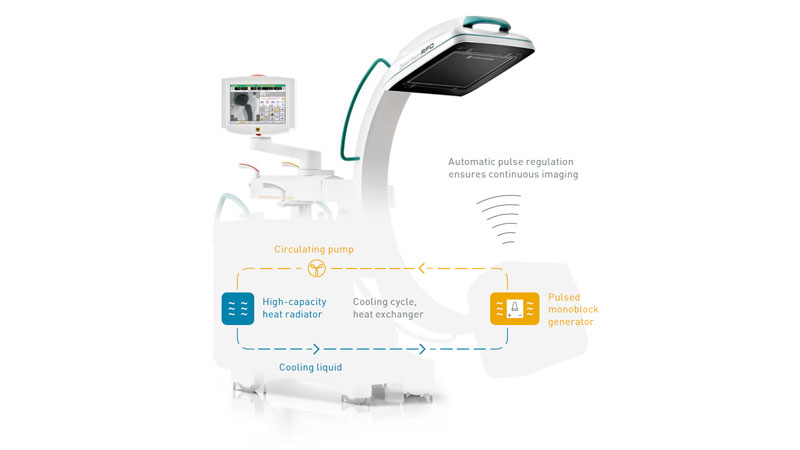

- Advanced Active Cooling guarantees uninterrupted cardiology imaging
- Reliable use for common coronary interventions and complex procedures such as TAVI
- Endovascular Navigation1 for intraoperative vascular fusion imaging for greater precision during complex vascular procedures
Outstanding image quality and reduced exposure for moving images
- Dedicated anatomical programs for cardiology and electrophysiology
- Specially developed cardio packages
- Short, sharp pulses for reduced motion artifacts

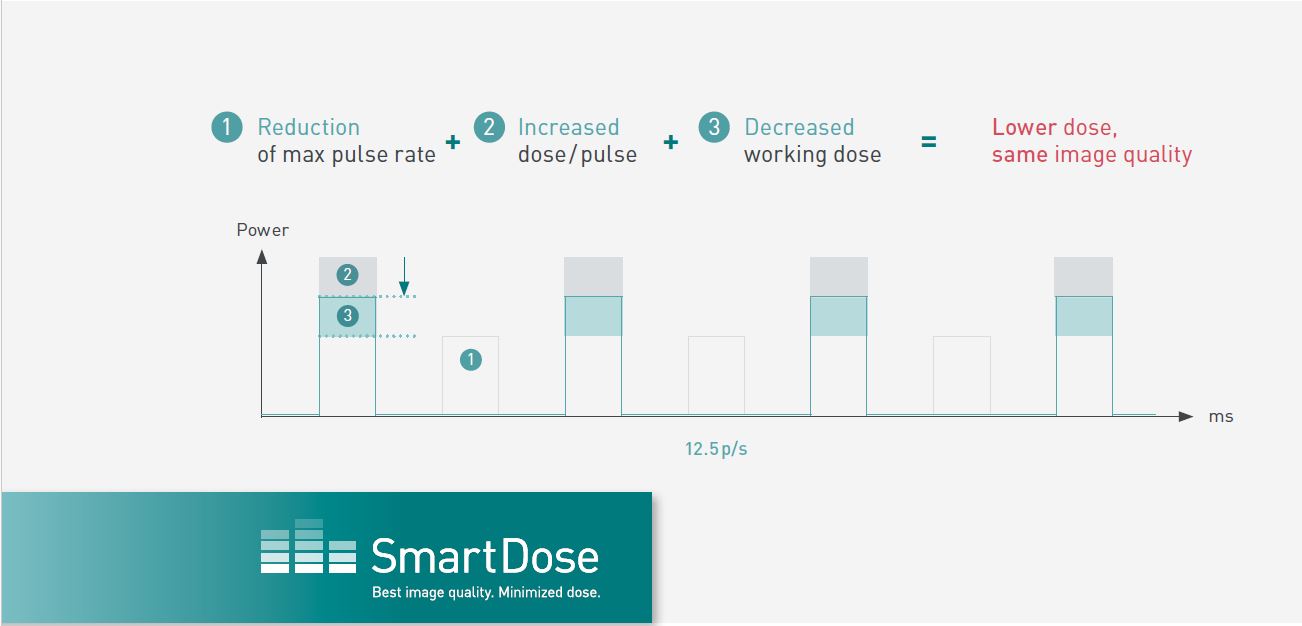

- Comprehensive SmartDose6 concept for high image quality and minimized dose
- Automatic optimization of dose and image quality with advanced anatomical programs
- Beam Filtration7 for reduced patient entrance dose without compromising on image quality for all CMOSline systems
The best clinical images of the Ziehm Vision RFD Hybrid Edition Cardio
Find out more about the many different possible applications in clinical use
Open PDF
Product Video
Video length: 0:47 min.
Individual Upgrades for your requirements
Position Control Center (PCC) and Distance Control
Faster and isocentric movement of the C-arm directly from the sterile field, including non-contact collision protection.
Remote Vision Center (RVC)
Synchronized third Vision Center
Removable Grid
Lower dose for peripheral or dose-sensitive procedures
3D Image fusion with Therenva EndoNaut
Intraoperative navigation system with image fusion to optimize endovascular procedures
Anatomical Marking Tool (AMT)
Colored markings and annotations on live images
Cineloop
Visualization of multiple fluoroscopy images in a short clip
Enhanced Vessel Visualisation (EVV)
Automated vessel detection during vascular interventions
Measurement Function
Precise measurement of distances, angles, and vessel lumen
Technical specifications
Imaging technology
CMOS, flat-panel, 21 cm x 21 cm / 31 cm x 31 cm
Resolution
2 k x 2 k / 3 k x 3 k
Image Chain
2k x 2k (QuantumStream)
Image Insights
CMOS: yes
Power generator
30 kW
Orbital Movement
165 degrees
Engine
Full control of the four motorized axes
Vascular Image Fusion
CMOS: Stand-alone solution with Therenva EndoNaut / Integrated solution with Endovascular Navigation
Advanced Active Cooling
Ziehm Usability Concept
SmartDose
Interested in learning more?
We are looking forward to getting your inquiry!
Disclaimer
-
1
Endovascular Navigation represents an optional medical device software package owned by Therenva SAS. Planning is performed with the software EndoSize, also owned by Therenva SAS. The EndoSize license is included in the Endovascular Navigation software package.
-
2
The Ziehm Vision RFD Hybrid Edition is an optional package comprising different hardware and software features for the Ziehm Vision RFD.
-
3
The CMOSline is a system configuration based on the Ziehm Imaging CMOS flat-panel detector.
-
4
This product / feature may not be commercially available in all countries. For regulatory reasons, the availability of each feature may vary. Please contact your local Ziehm Imaging representative for detailed information.
-
5
QMAPP®is a registered trademark of Fysicon B.V. In the USA, the QMAPP® software obtained a substantial equivalence determination and FDA clearance through the CDRH premarket notification process (510(K)). In Europe, the QMAPP® software is CE marked (class IIb). The information provided in the labeling and manual is intended for healthcare professionals only. For the safe and successful operation of the device, always read the instructions.
-
6
The SmartDose Concept includes a variety of hardware and software features. For regulatory reasons, the availability of the individual features may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
-
7
The Beam Filtration technology reduces dose exposure for all CMOSline systems compared to conventional filtration techniques (Status before September 2017). Data on file. Results may vary.
