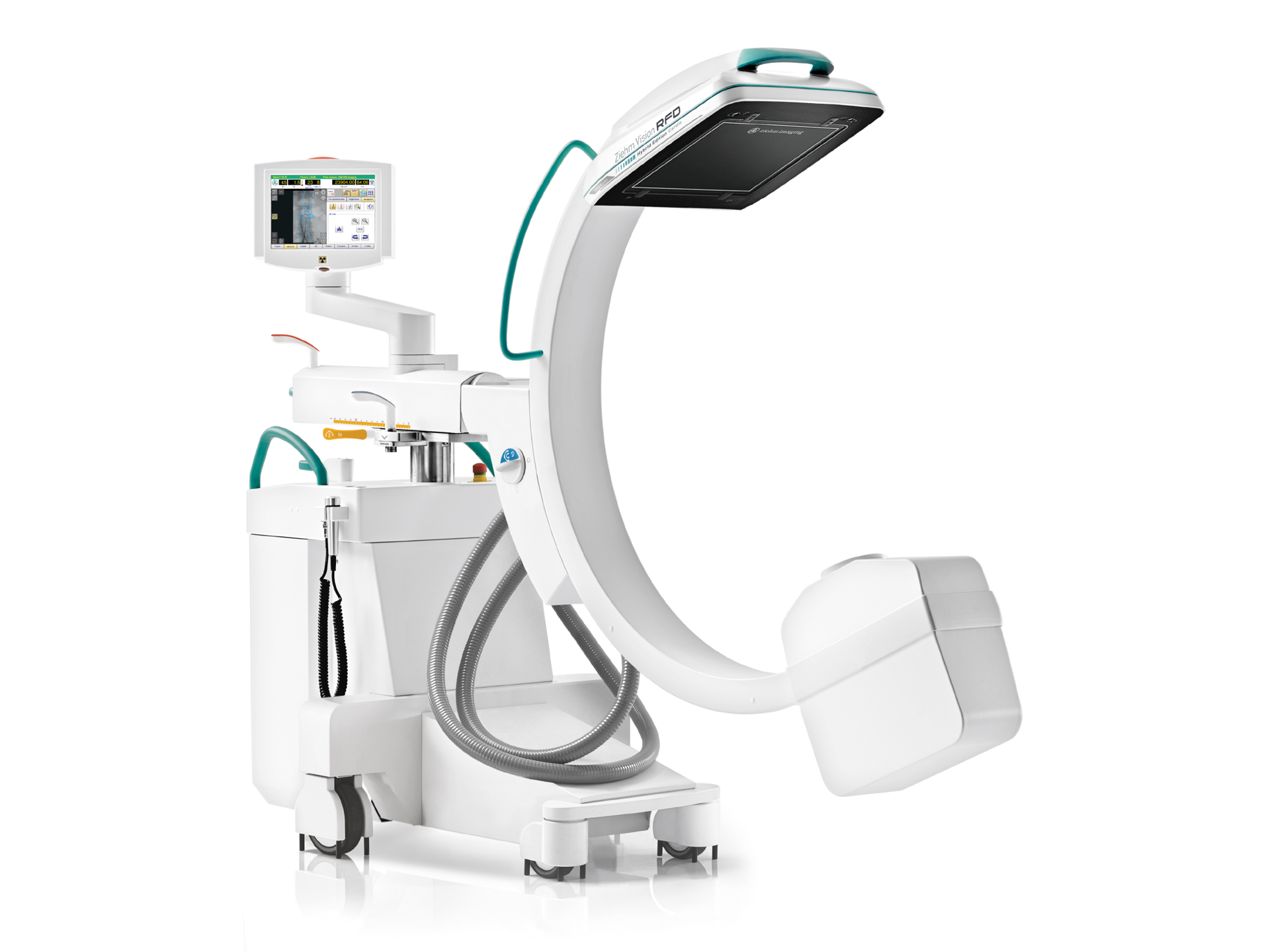

ZIEHM VISION RFD
HYBRID EDITION
Contact Us
Product brochure
The comprehensive
mobile hybrid solution
The comprehensive
mobile hybrid solution
An aging population is creating an increasing demand for cardiovascular surgery. The Ziehm Vision RFD Hybrid Edition1, as a powerful 30 kW mobile C-arm, offers state-of-the-art CMOS technology3 for even better image quality in procedures. It can be used flexibly in terms of space and time. The OR can be expanded to include a complete hybrid solution without the need for costly adaptation of the spatial conditions.
Combined with the first Endovascular Navigation2 integrated into a mobile C-arm for demanding hybrid procedures, the system enables greater precision while at the same time reducing dose and contrast media. This is accelerating clinical workflows, improving accurate decision-making, and expanding treatment options like never before.
Extend your clinical capabilities in cardiovascular surgery
- Latest CMOS flat-panel technology
- Pulsed monoblock generator with up to 30 kW power performance
- Redesigned imaging system QuantumStream with first true 2k2k image resolution for premium mobile imaging
- Integrated energy storage for higher performance
- Advanced Active Cooling to keep the generator at an optimum operating temperature
Take your OR to the next level with a mobile hybrid solution
- Full control of the four motorized axes via the Position Control Center (joystick module) and the Remote Vision Center (touchscreen)
- 165 degrees of orbital movement for easier patient coverage
- Dedicated SmartVascular workflow for advanced vascular procedures

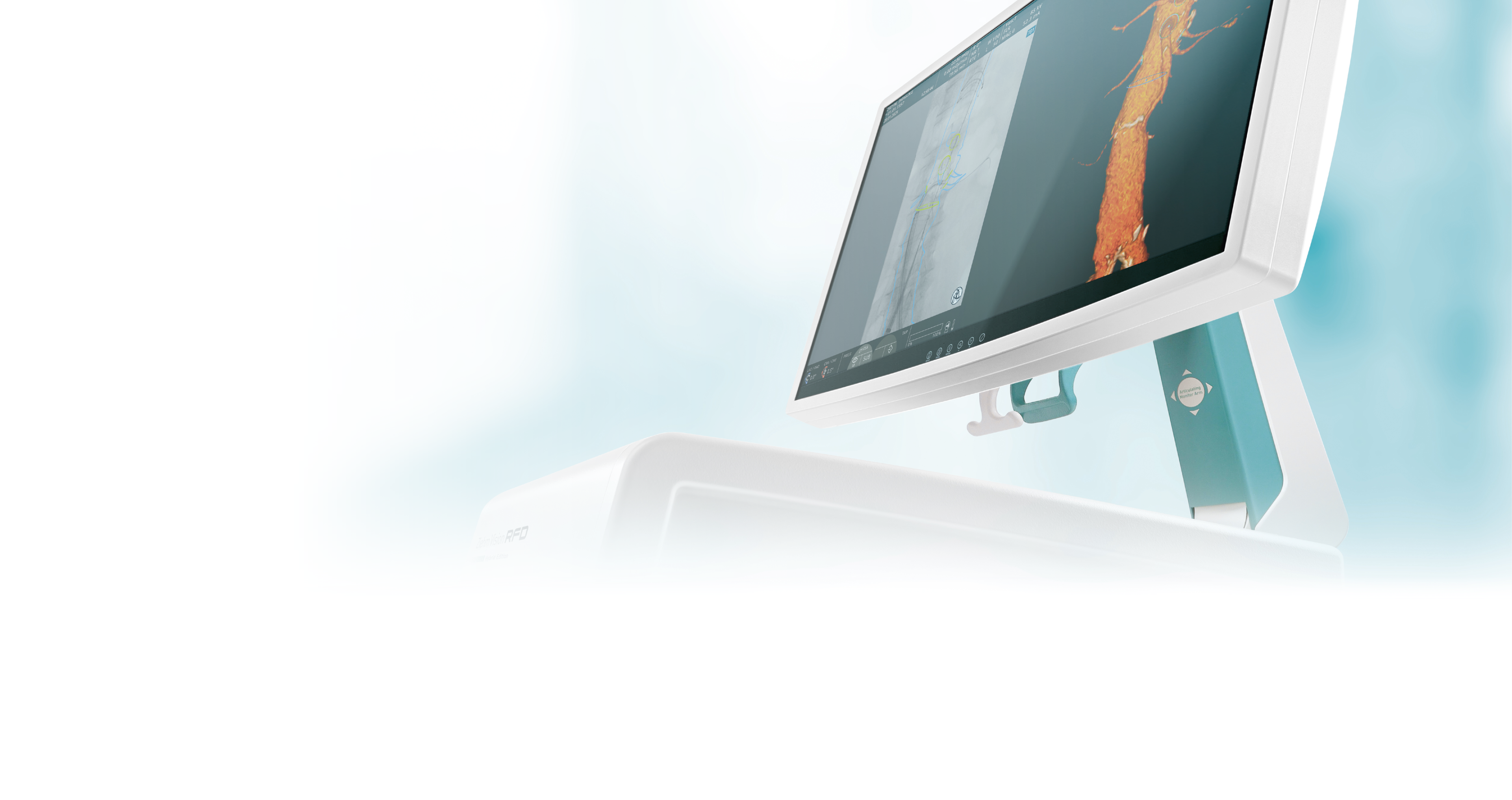

- Endovascular Navigation integrated in our All-in-one solution or combined with Therenva EndoNaut
Plug in and start your hybrid procedure without construction work
- Easy and fast setup without OR preparation
- Avoidance of complex and expensive planning and construction phases
- Reduced operating costs in comparison to conventional hybrid ORs
- The Ziehm Usability Concept4 combines an excellent set of hardware features with seamlessly integrated software functionalities

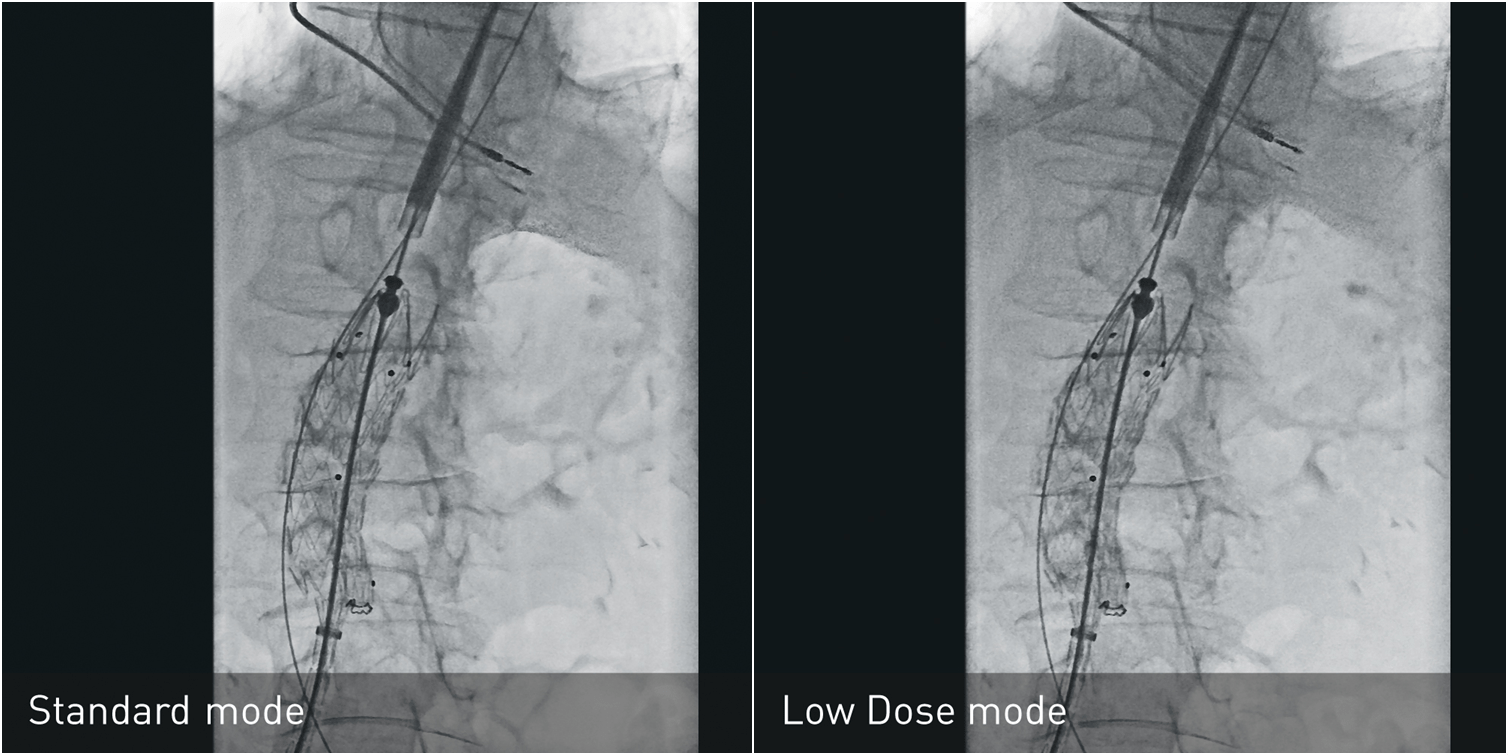

Reduce exposure significantly with the next-generation SmartDose5
- Comprehensive dose concept for high image quality and minimized dose
- Automatic optimization of dose and image quality with advanced anatomical programs
- Dedicated functions to significantly reduce exposure in pediatric procedures6
- Beam Filtration7 for reduced patient entrance dose without compromising on image quality for all CMOSline systems

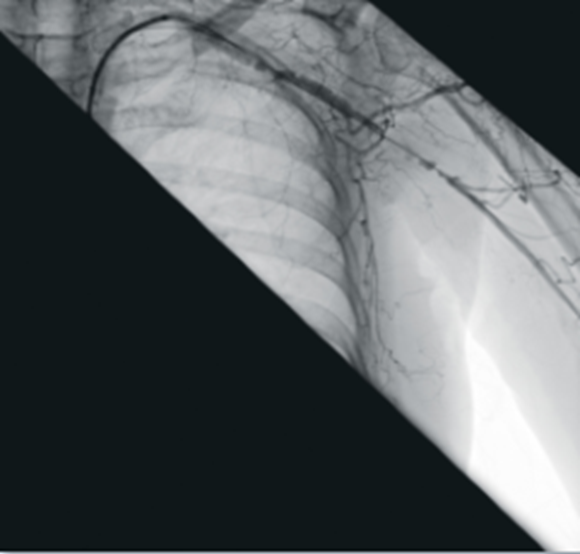

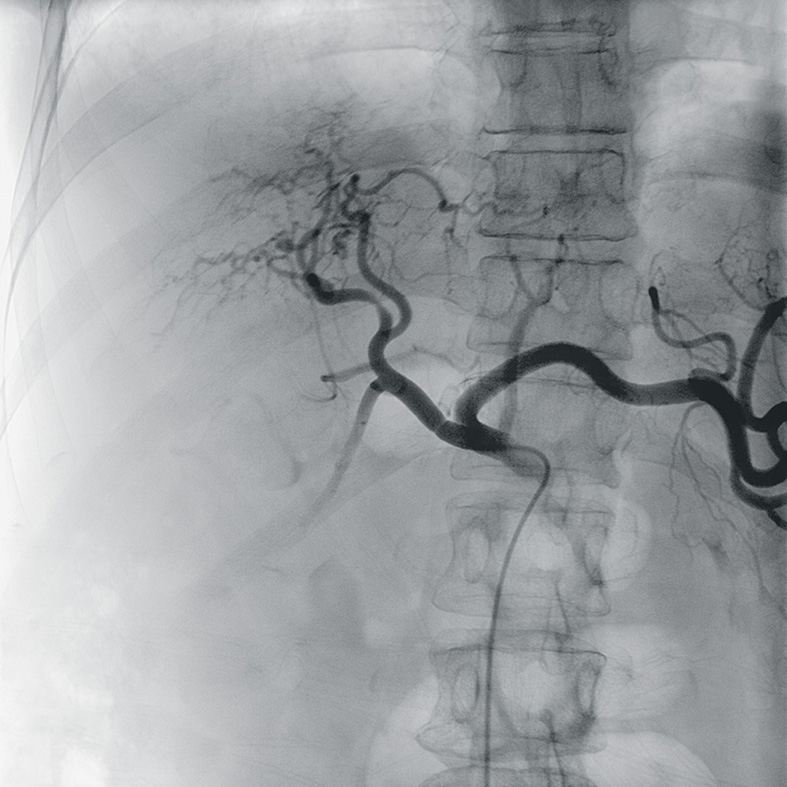

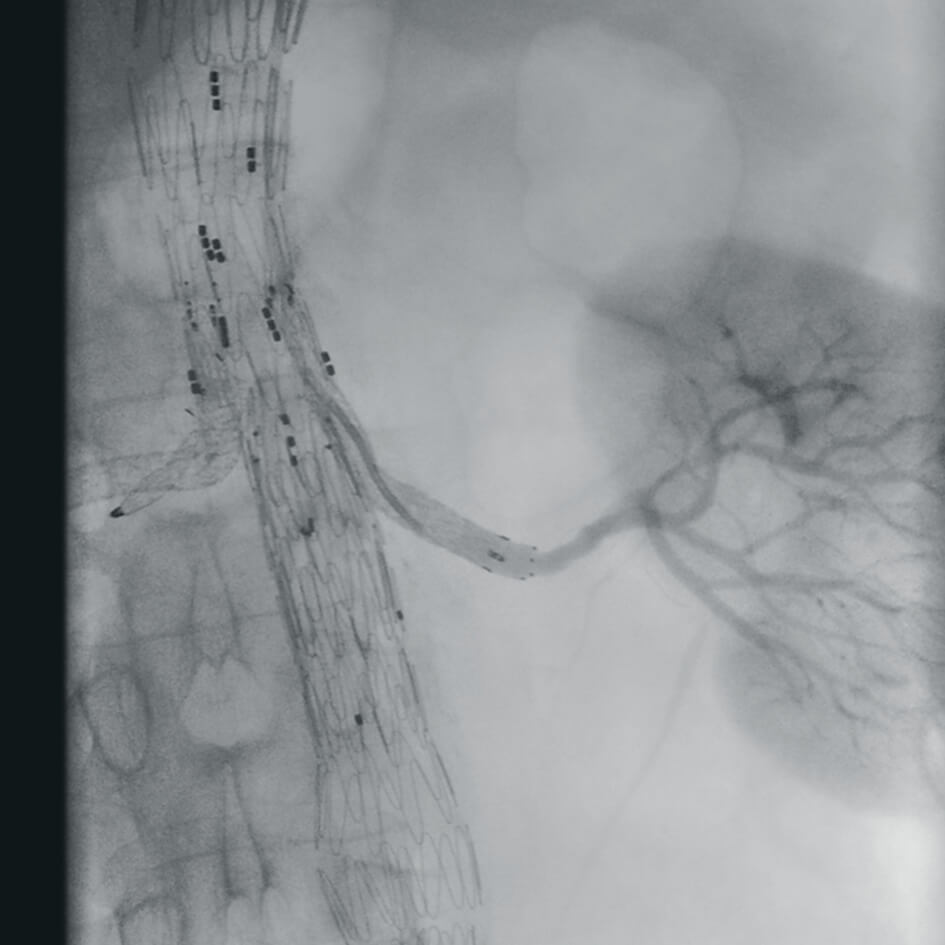

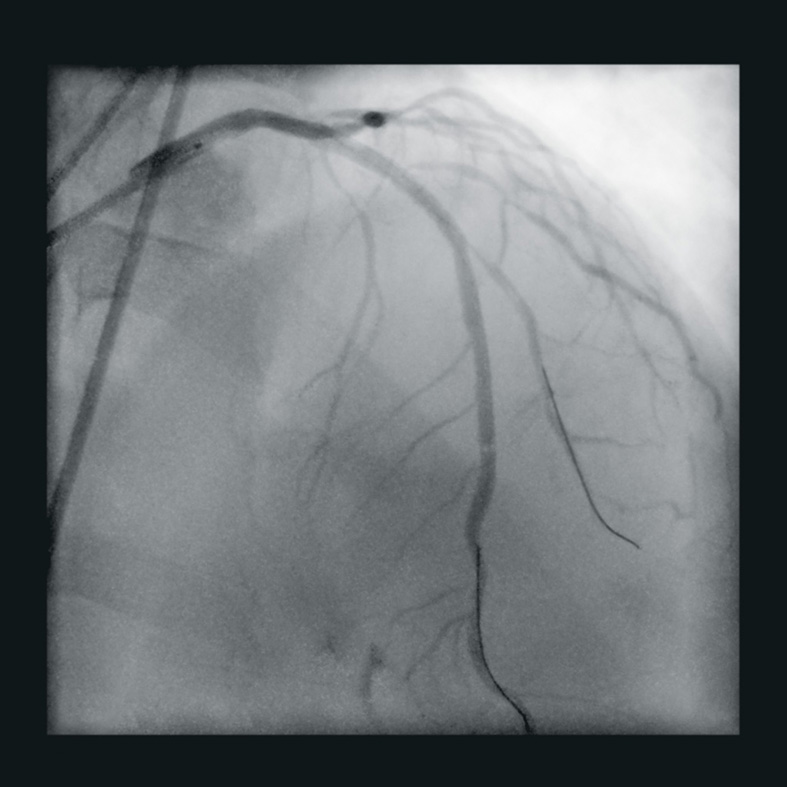

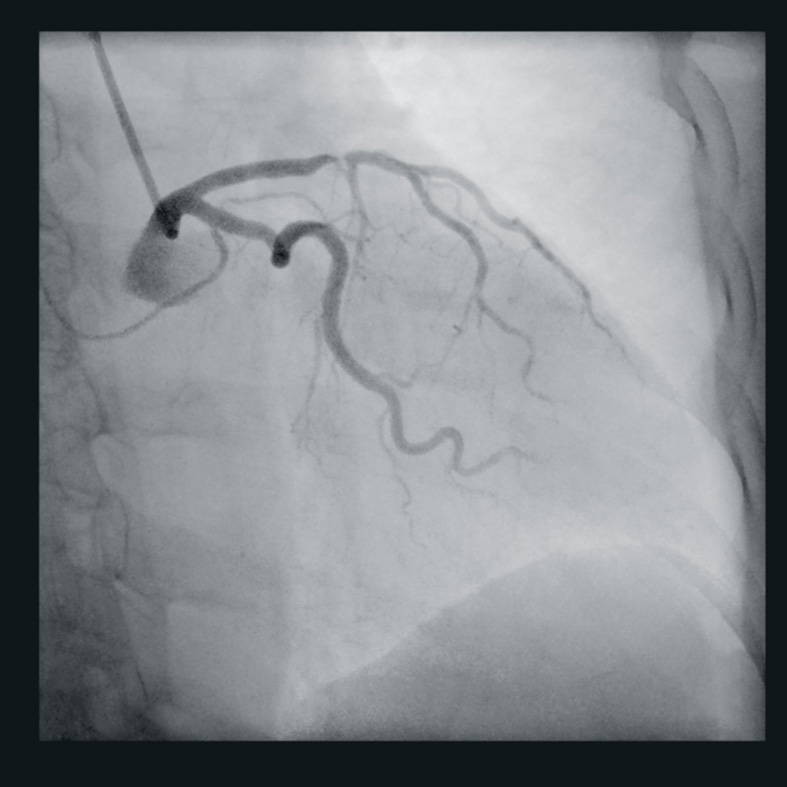

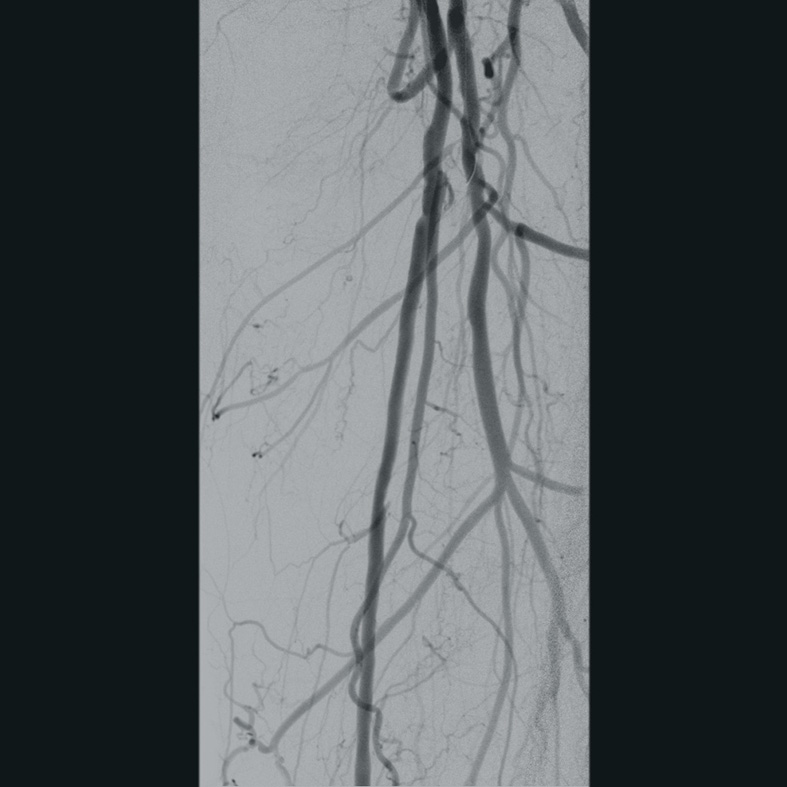

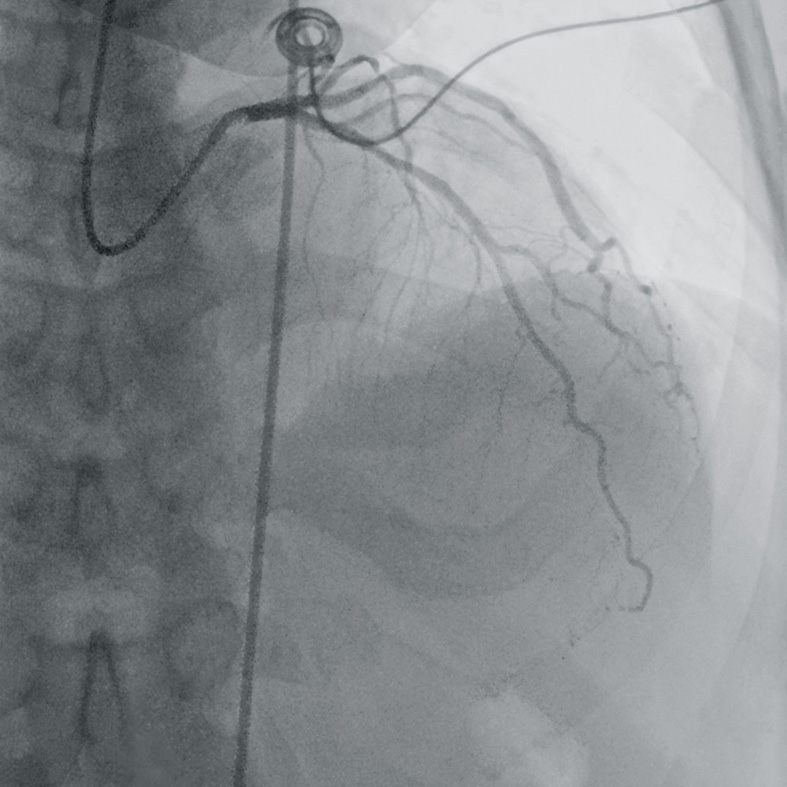

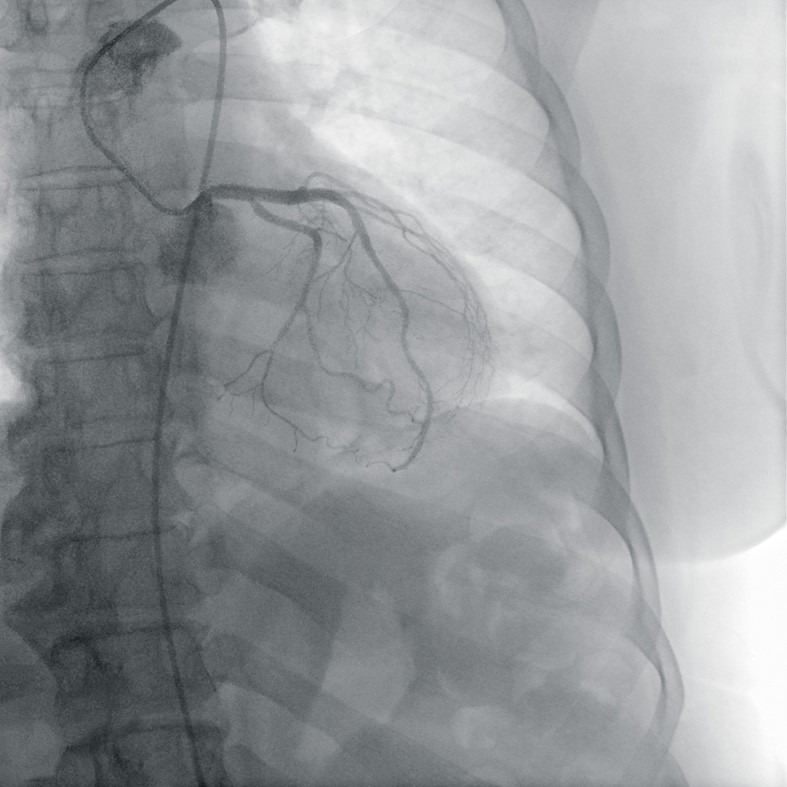

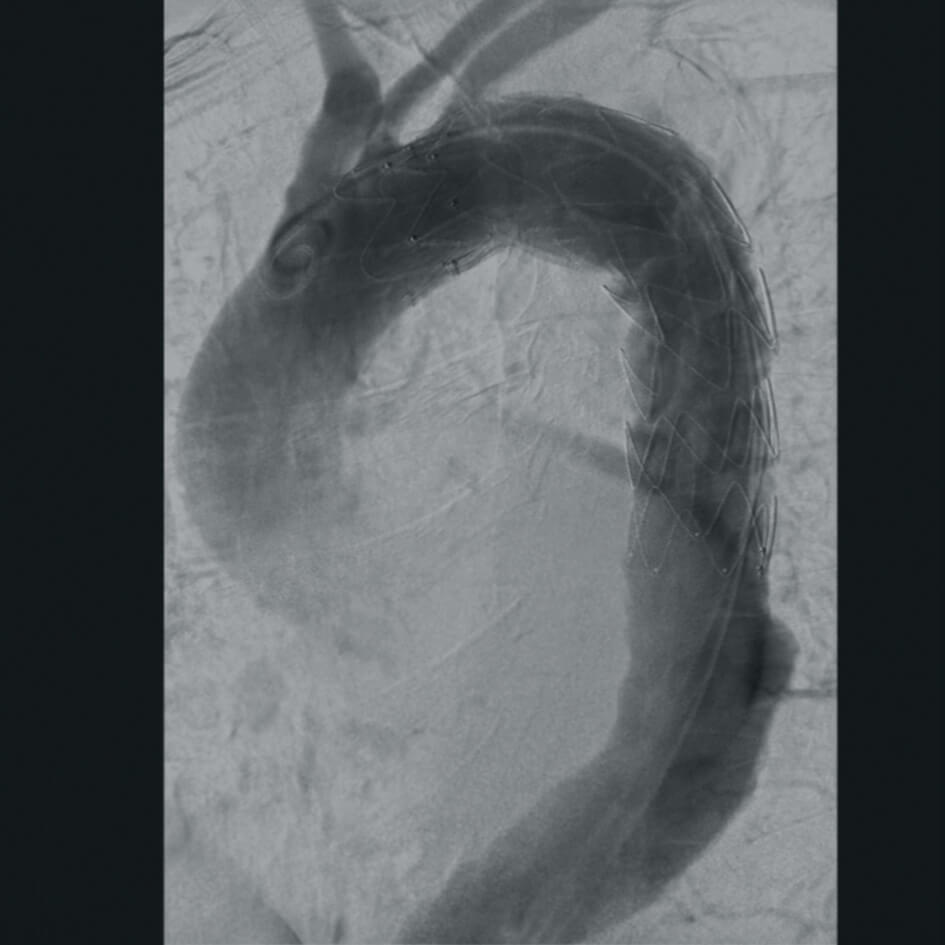

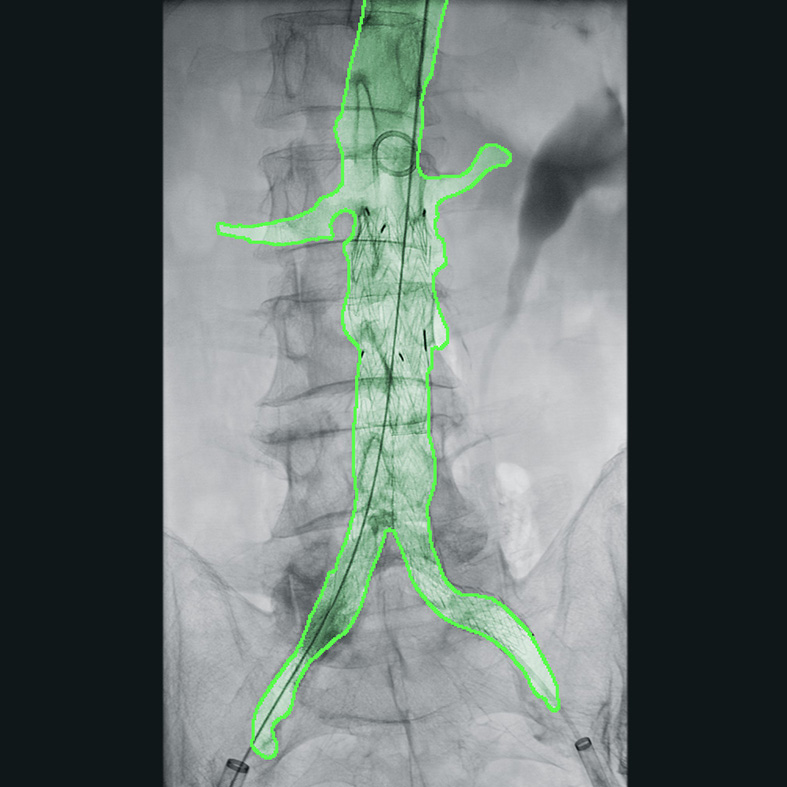

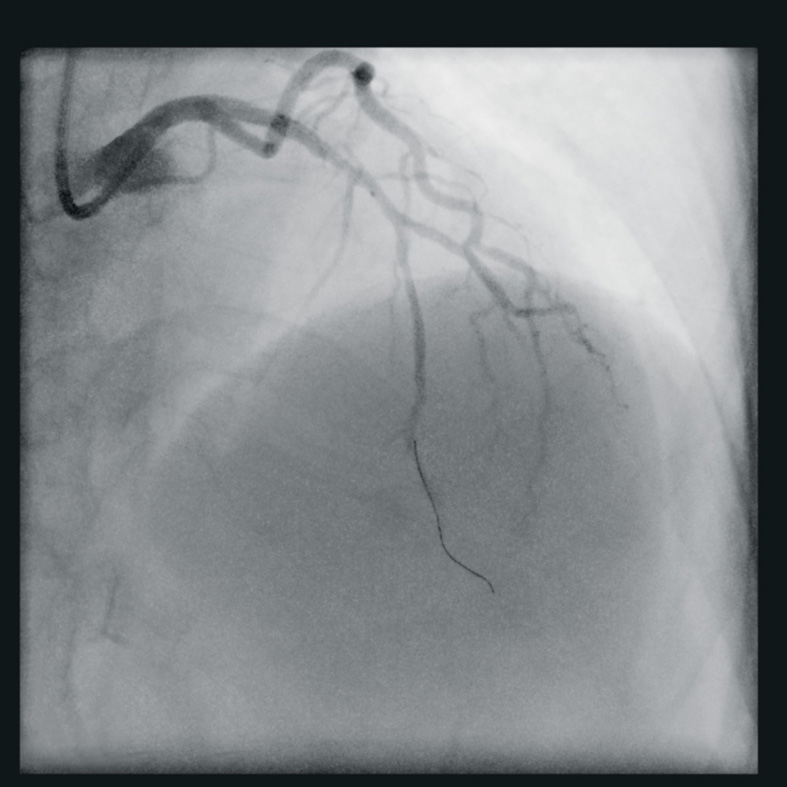

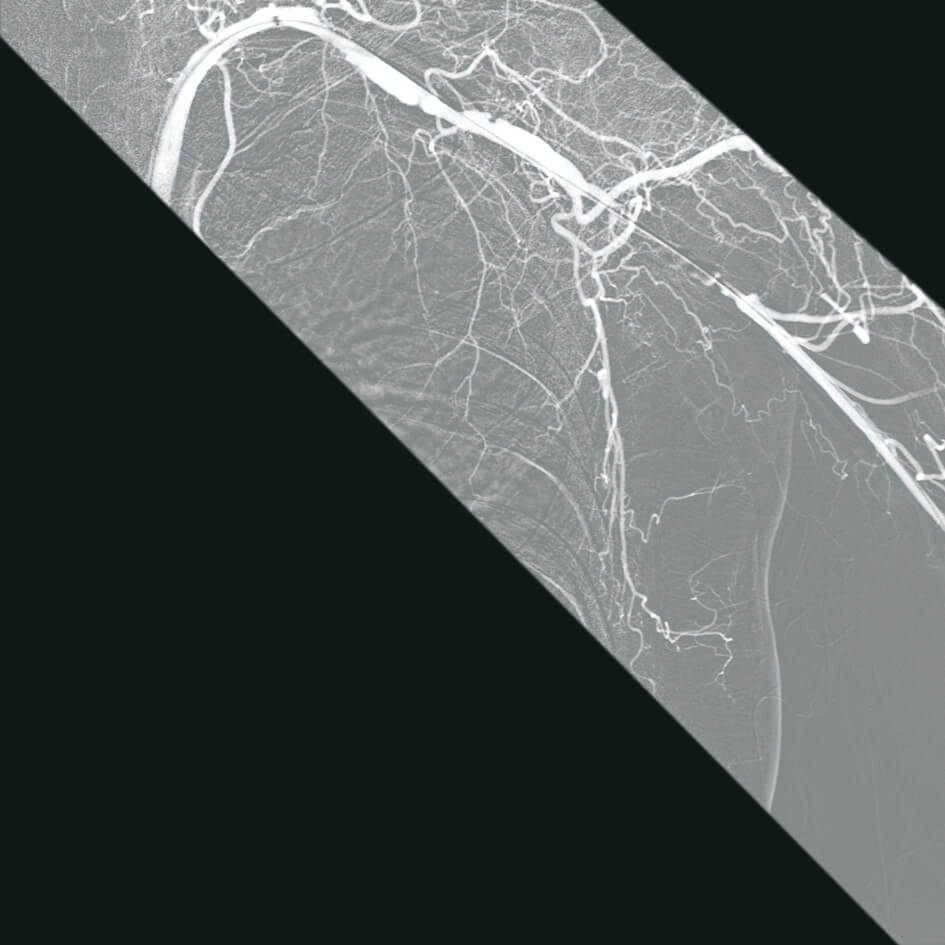

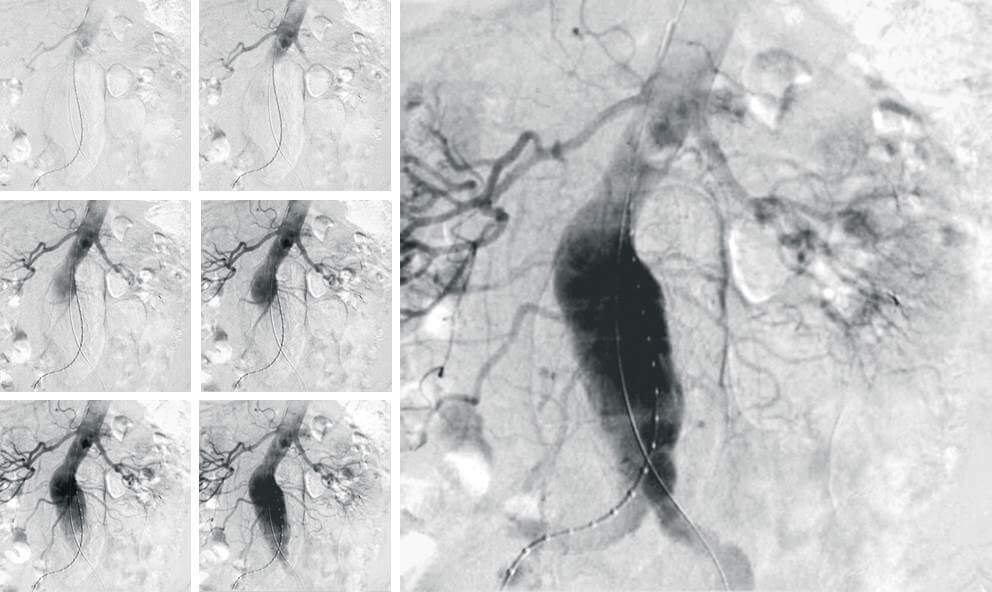

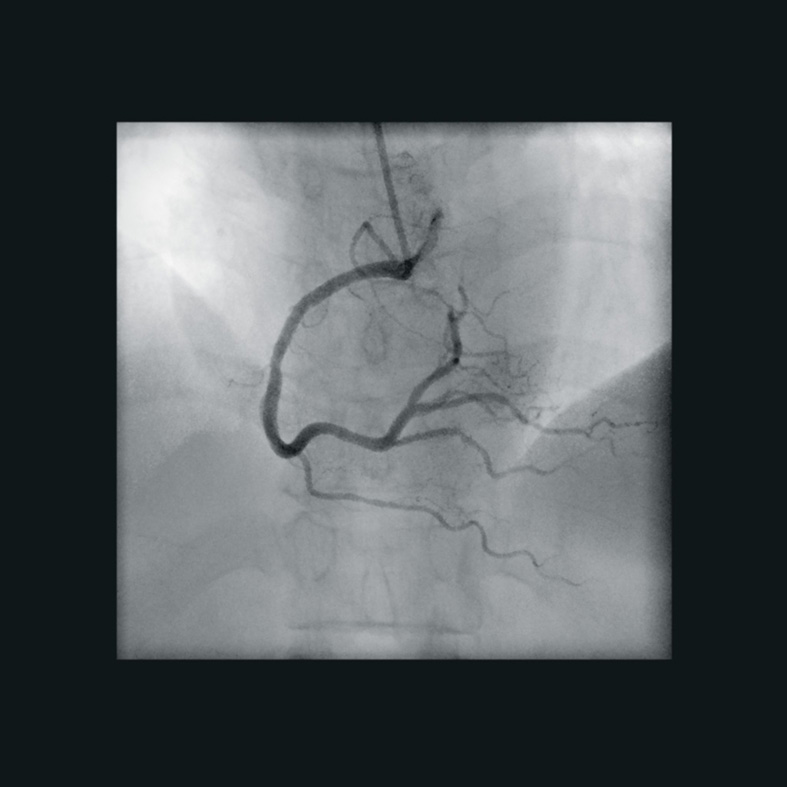

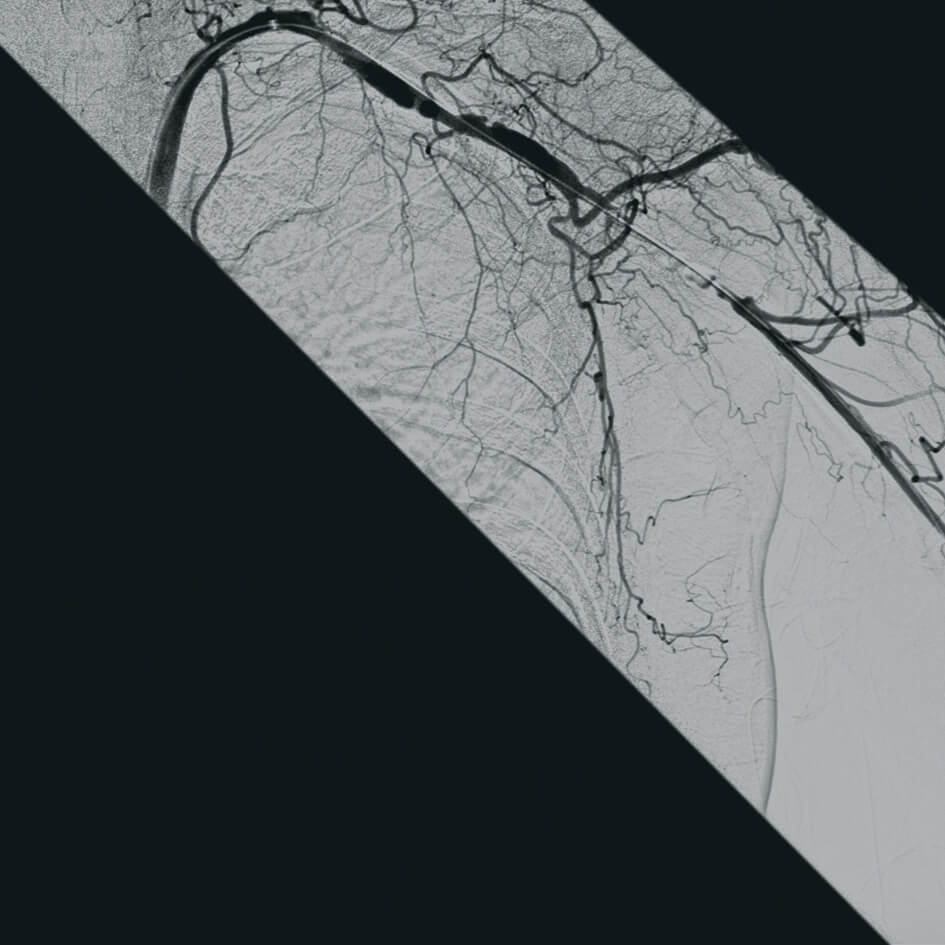

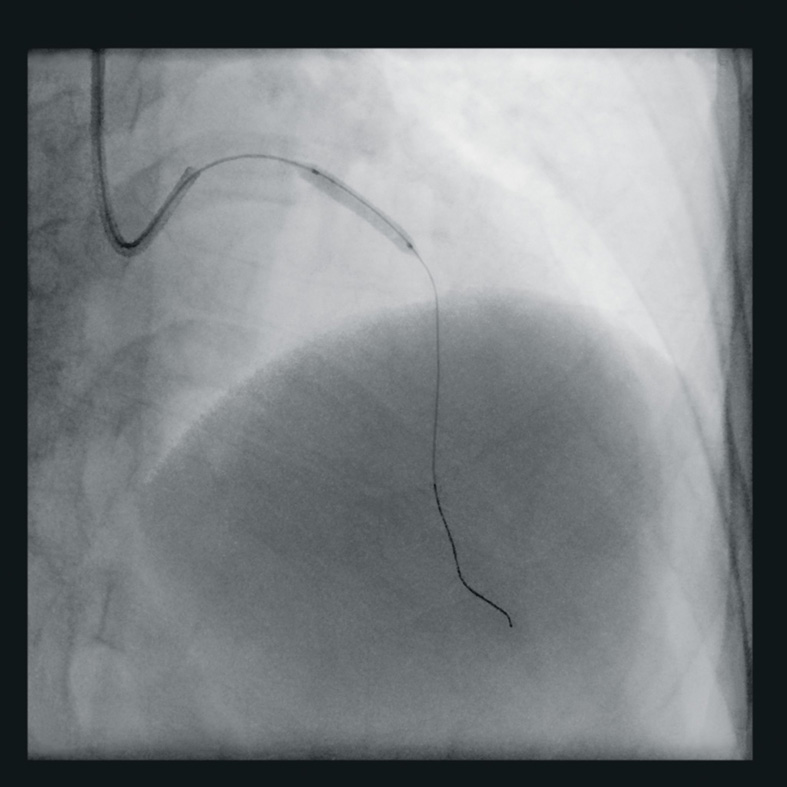

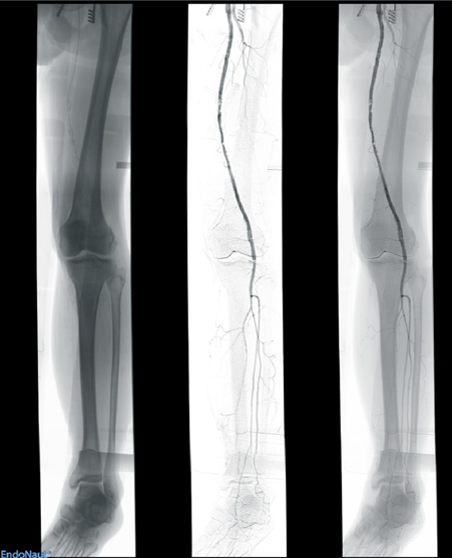

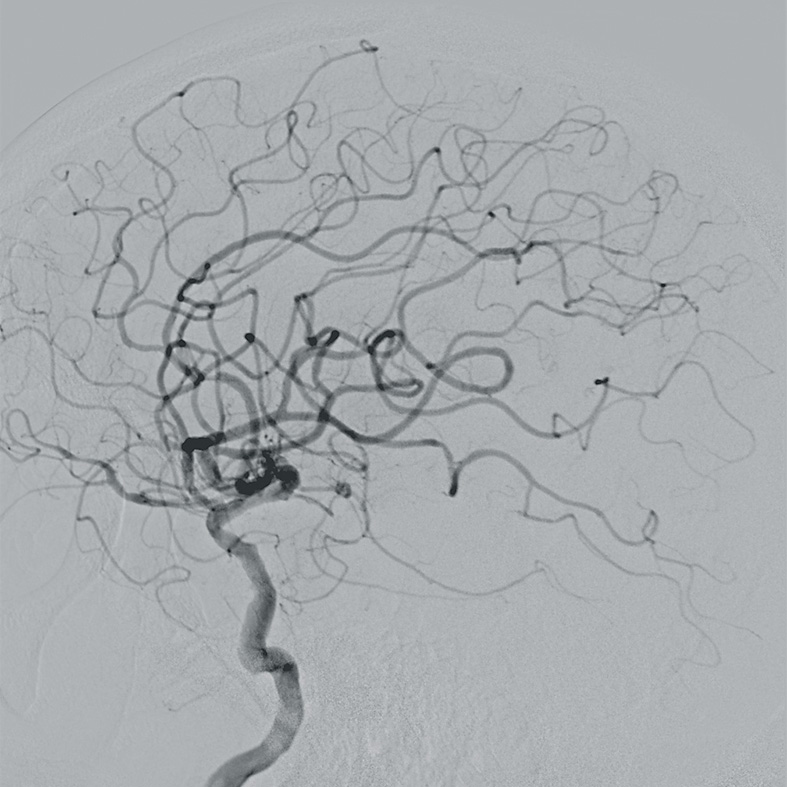

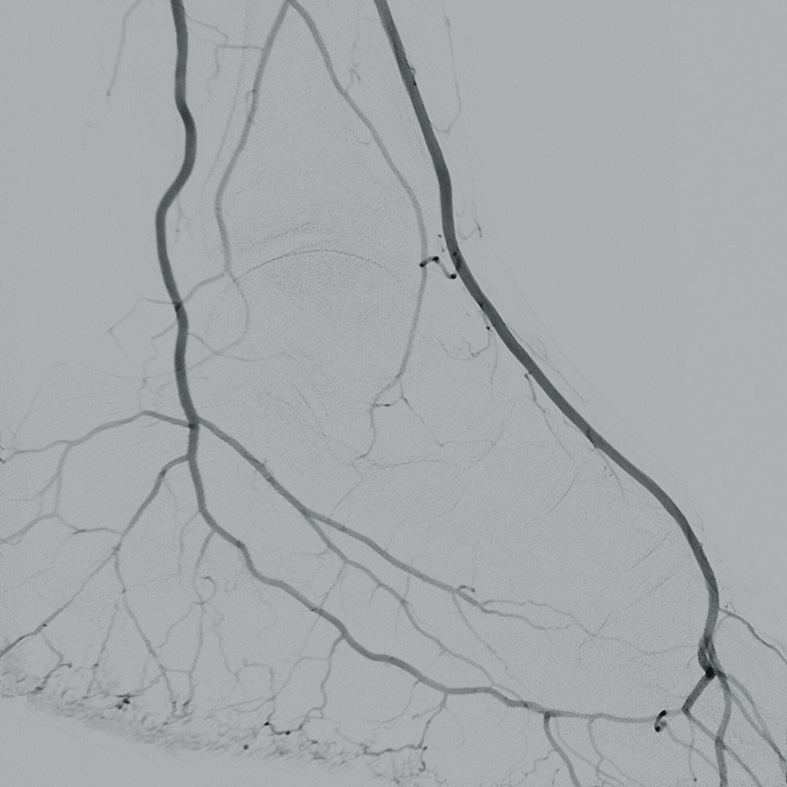

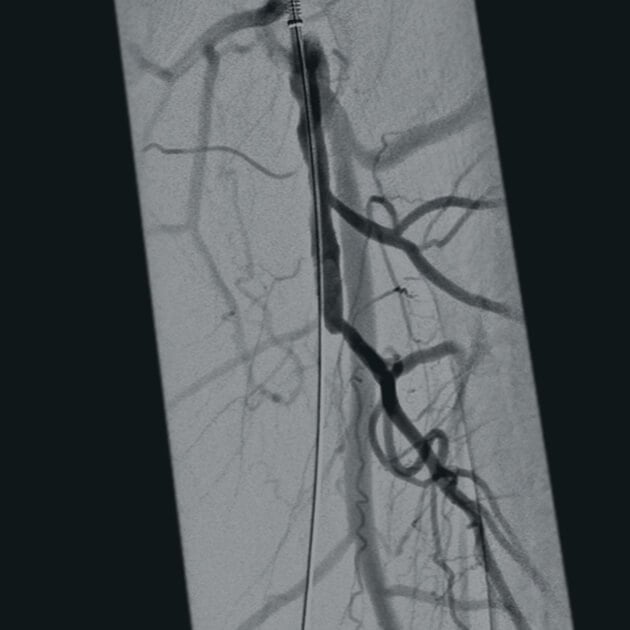

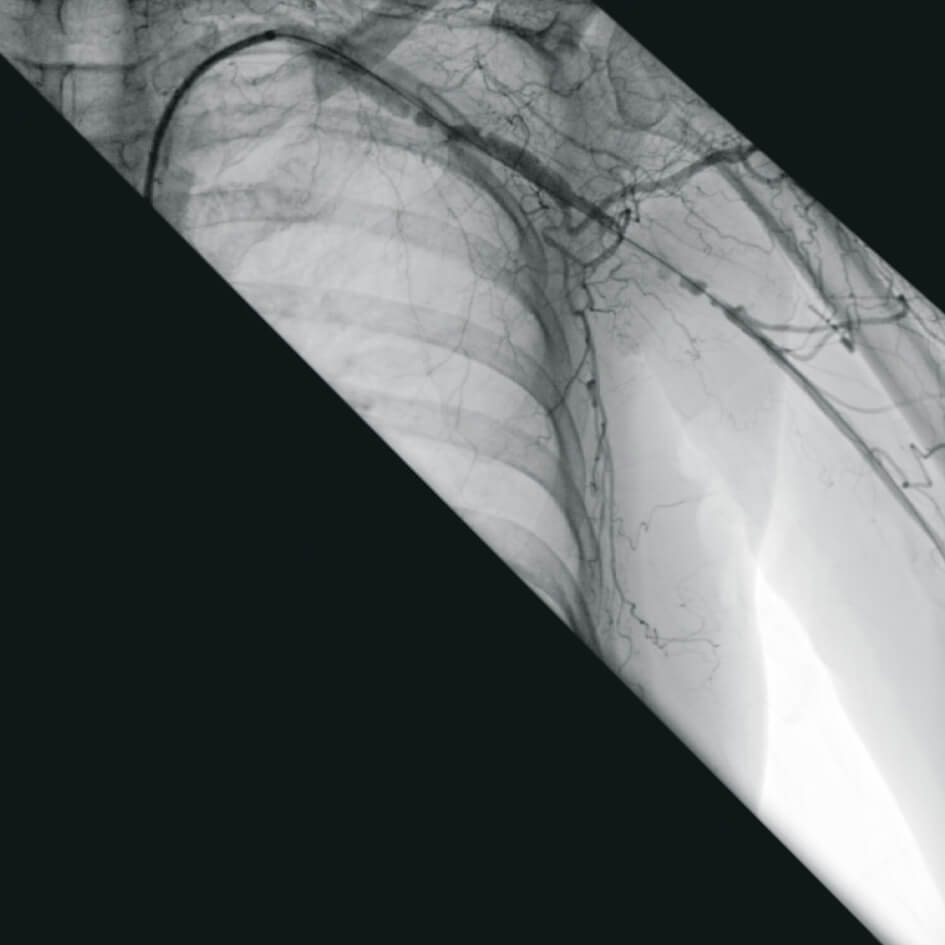

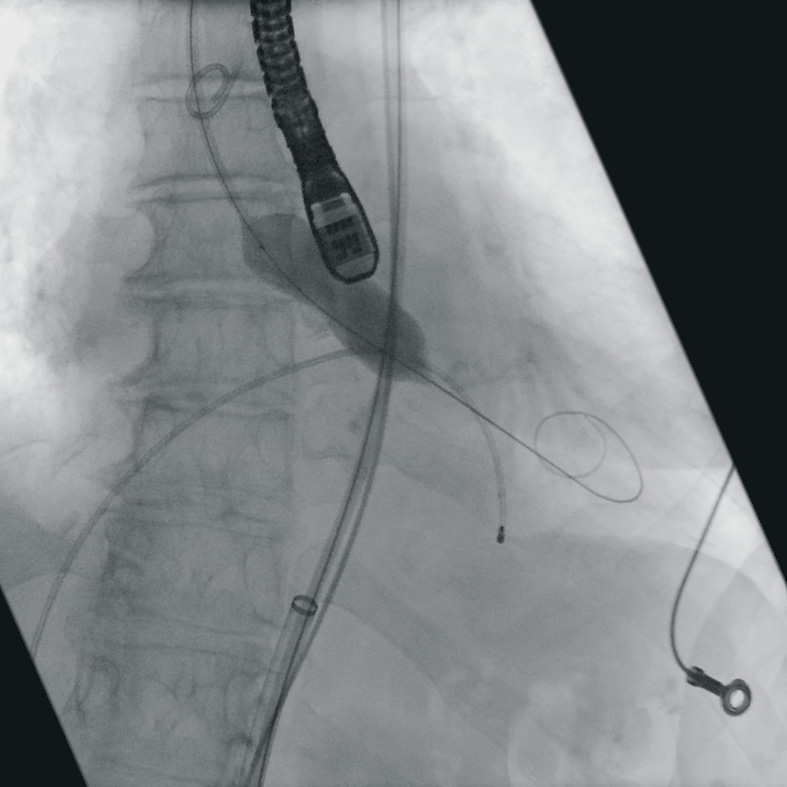

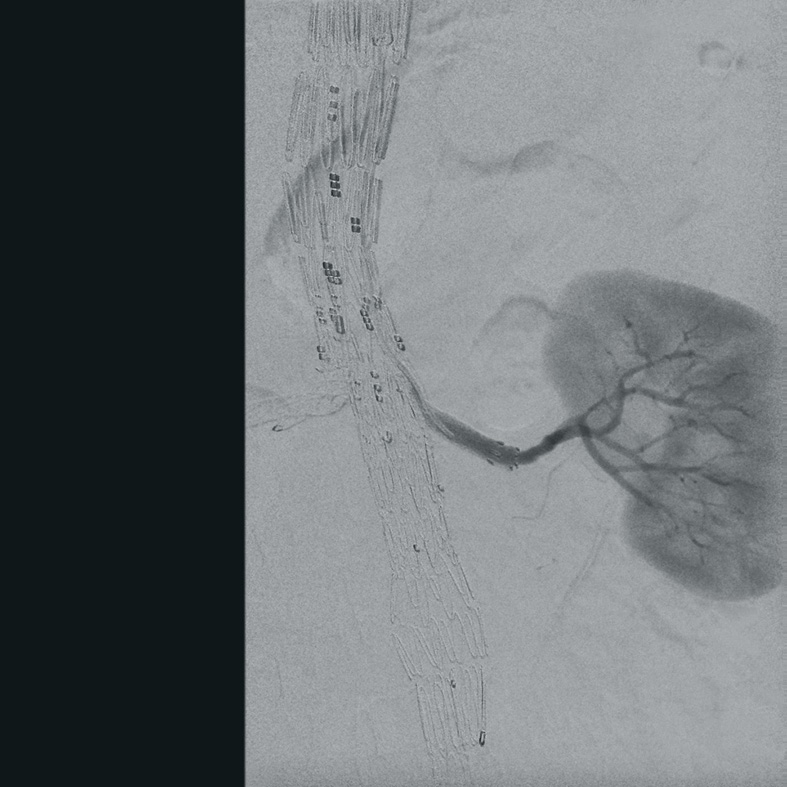

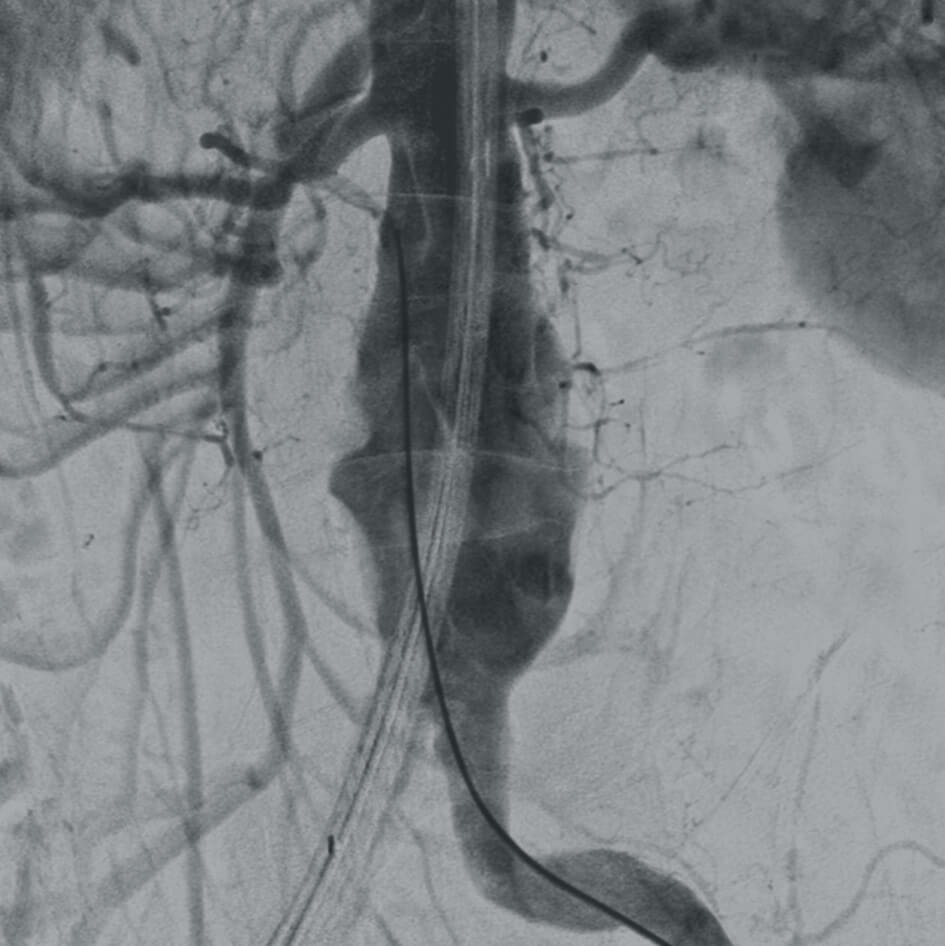

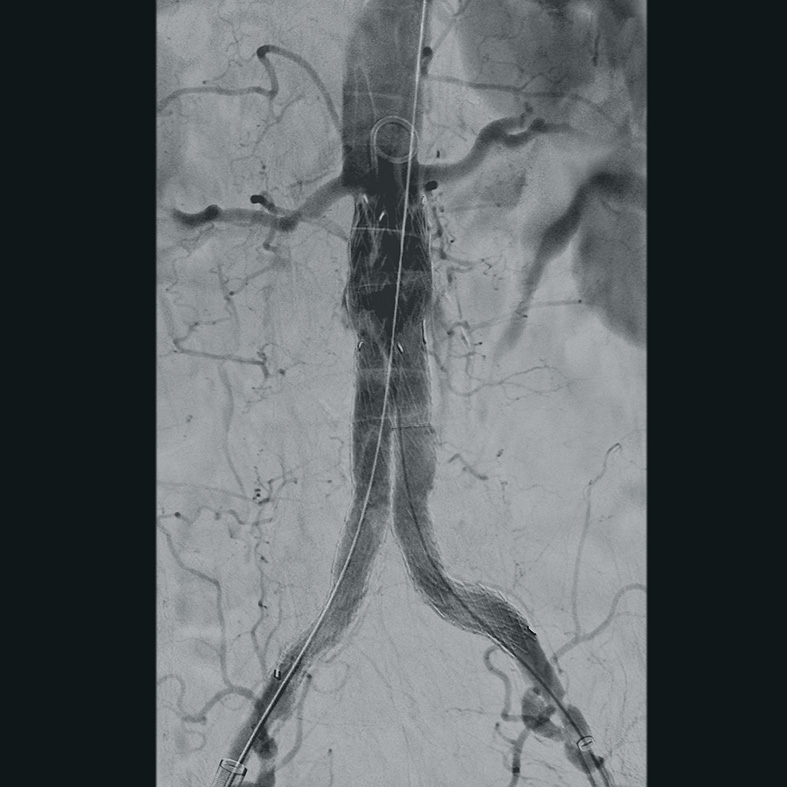

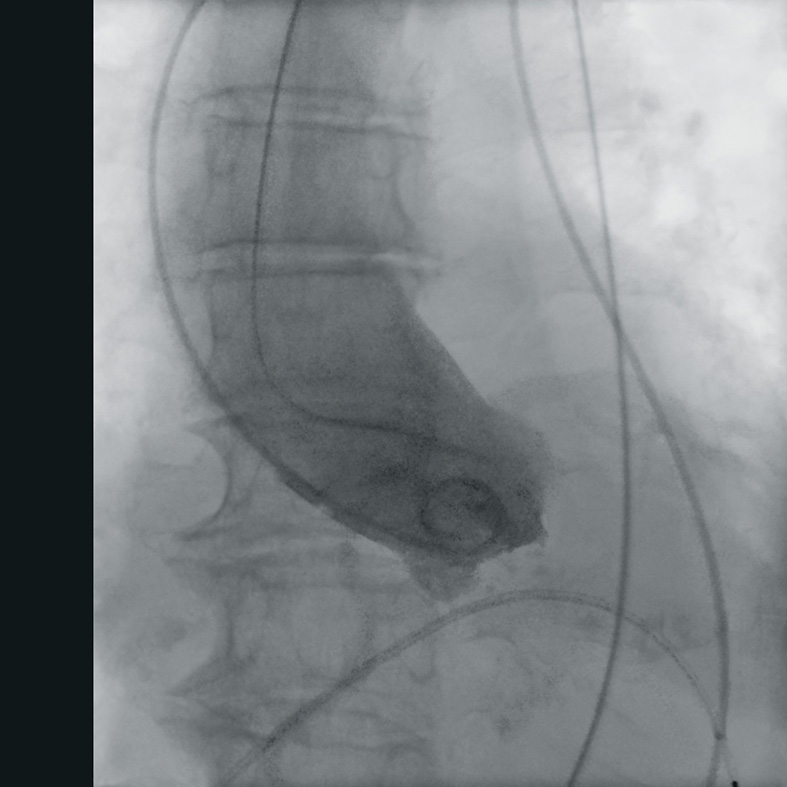

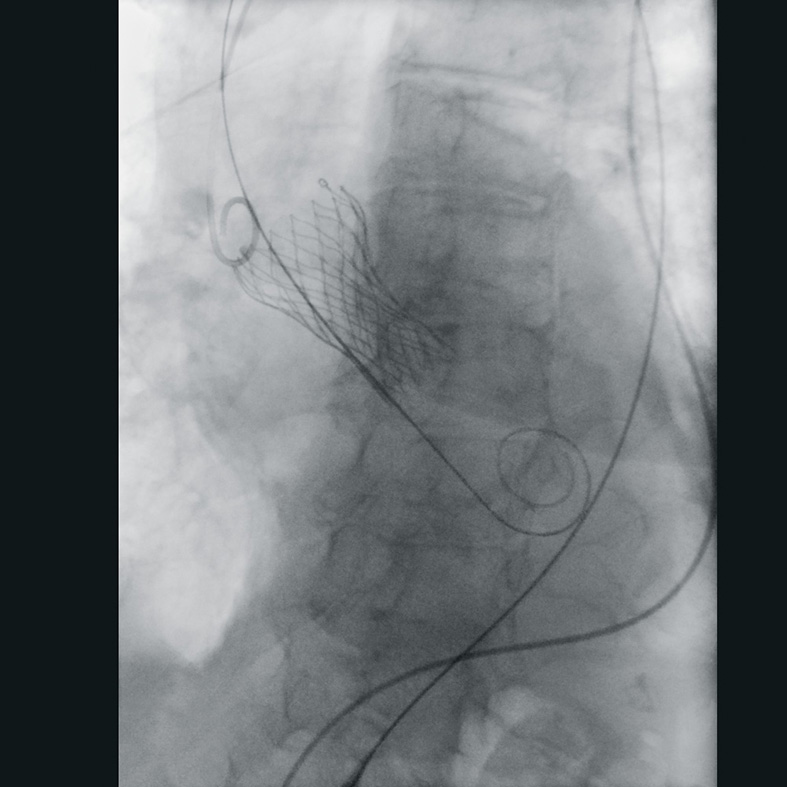

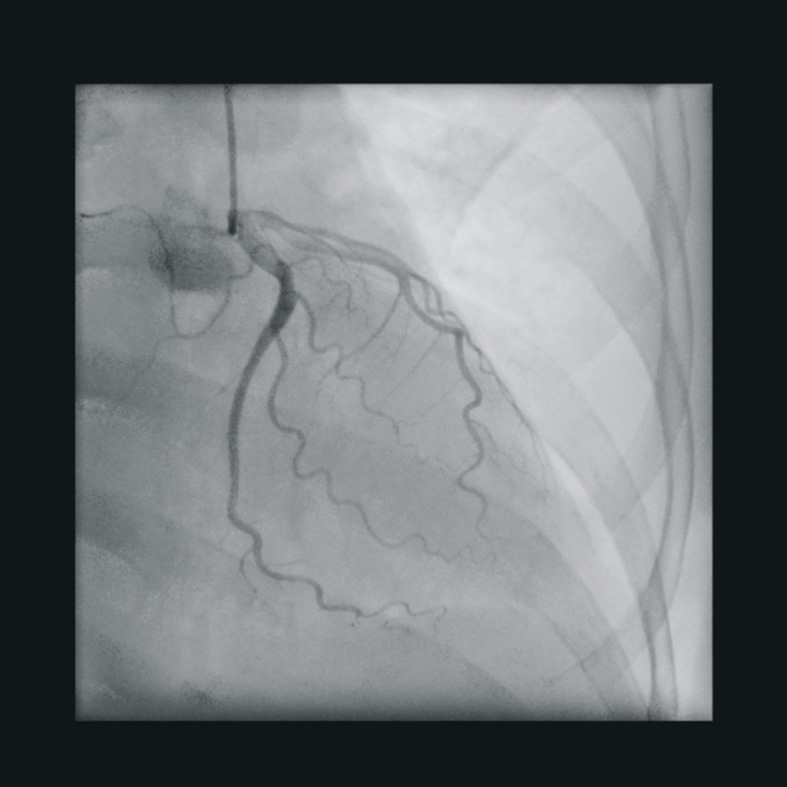

The best clinical images of the Ziehm Vision RFD Hybrid Edition
Find out more about the many different possible applications in clinical use
Open PDF

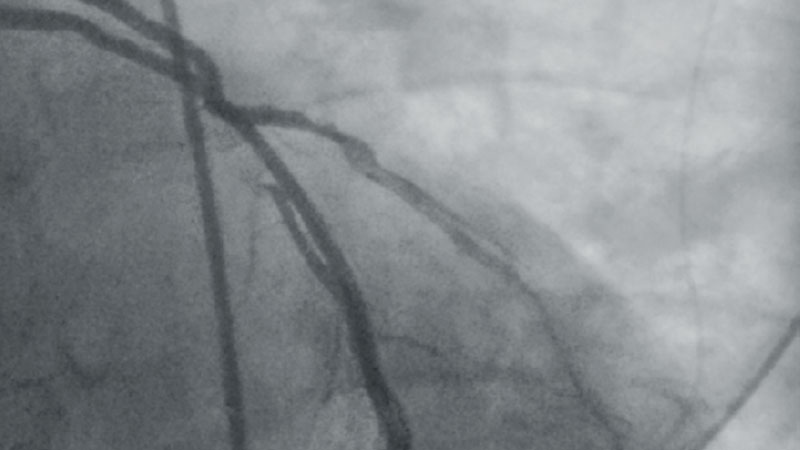

Case-Report
Reading duration: 15 min.
Whitepaper
Reading duration: 10 min.
Product Video
Video length: 4:03 min.
Individual Upgrades for your requirements
Position Control Center (PCC) and Distance Control
Faster and isocentric movement of the C-arm directly from the sterile field, including non-contact collision protection.
Remote Vision Center (RVC)
Synchronized third Vision Center

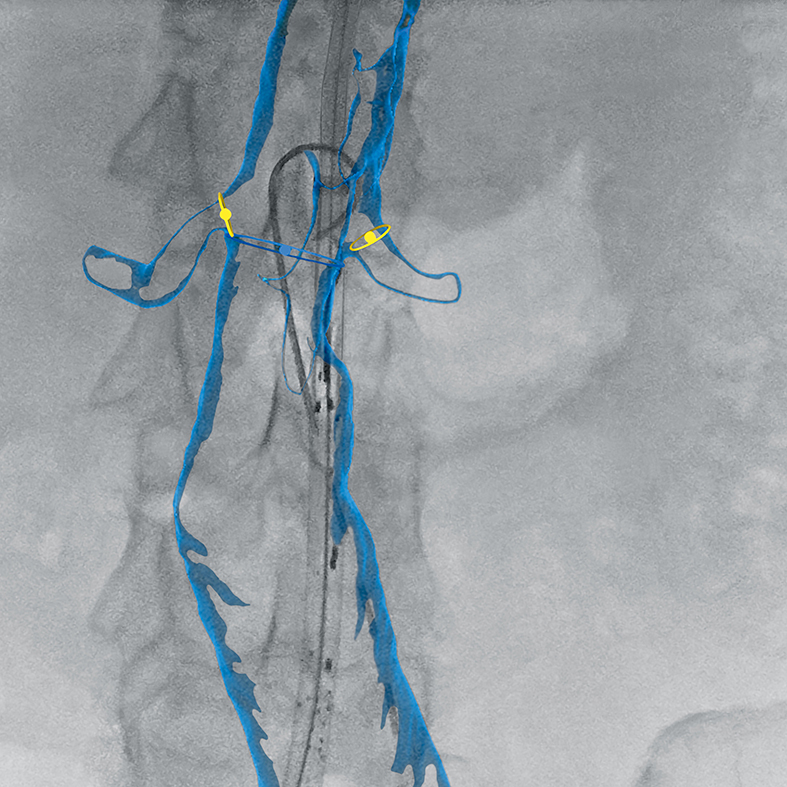

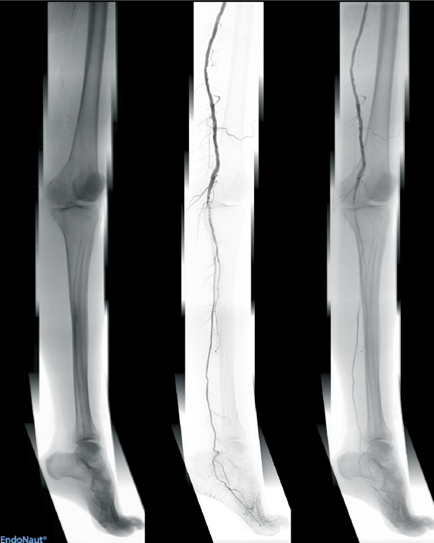

3D Image fusion with Therenva EndoNaut
Intraoperative navigation system with image fusion to optimize endovascular procedures
Wireless Dual-Plus Footswitch
Wireless control of all imaging functions
Anatomical Marking Tool (AMT)
Colored markings and annotations on live images
HIPAA Security Option
Protection against unauthorized access
Enhanced Vessel Visualisation (EVV)
Automated vessel detection during vascular interventions
Endovascular case planning with Therenva EndoSize
Software for planning cardiovascular procedures
Technical specifications
Imaging technology
CMOS, flat-panel, 21 cm x 21 cm / 31 cm x 31 cm
a-Si, flat-panel, 30 cm x 30 cm
Resolution
CMOS: 2k x 2k / 3k x 3k
a-Si: 1.5k x 1.5k
Image Chain
CMOS: 2k x 2k (QuantumStream)
a-Si: 1 k x 1 k
Image Insights
CMOS: yes
a-Si: no
Power generator
CMOS: 30 kW²
a-Si: 25 kW
Vascular Image Fusion
CMOS: Stand-alone solution with Therenva EndoNaut / Integrated solution with Endovascular Navigation
a-Si: Stand-alone solution with Therenva EndoNaut
Orbital Movement
165 degrees
Engine
Full control of the 4 motorized axes
Vascular 3D-Image-Fusion
Therenva Endonaut®
Advanced Active Cooling
Ziehm Usability Concept
SmartDose
Image Insights
CMOS: yes
a-Si: no
Image Chain
CMOS: 2k x 2k (QuantumStream)
a-Si: 1.5 k x 1.5 k
Interested in learning more?
We are looking forward to getting your inquiry!
Disclaimer
-
1
Ziehm Vision RFD Hybrid Edition represents a group of optional hardware and software that creates an option package on the device named Ziehm Vision RFD.
-
2
Endovascular Navigation represents an optional medical device software package owned by Therenva SAS. Planning is performed with the software EndoSize, also owned by Therenva SAS. The EndoSize license is included in the Endovascular Navigation software package.
-
3
This product/feature might not be commercially available in all countries. Due to regulatory reasons their future availability cannot be guaranteed. Please contact Ziehm Imaging for detailed information.
-
4
The Usability Concept includes a variety of hard- and software features. Due to regulatory reasons the availability of each feature may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
-
5
The SmartDose Concept includes a variety of hard- and software features. Due to regulatory reasons the availability of each feature may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
-
6
Gosch D. et al. “Influence of grid and ODDC on radiation exposure and image quality using mobile C-arms – First results”, RöFo, 09/07
-
7
The technology Beam Filtration reduces dose exposure for all CMOSline systems in comparison to conventional filtration techniques (Status before September 2017). Data on File. Results may vary.
